Product Overview

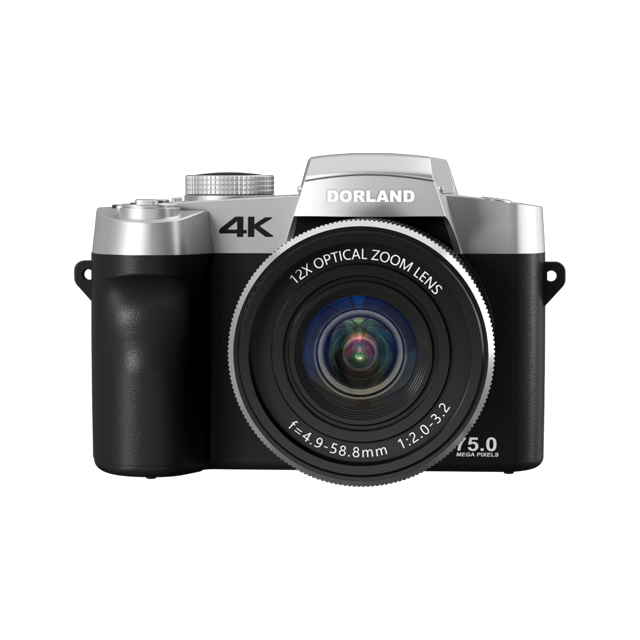

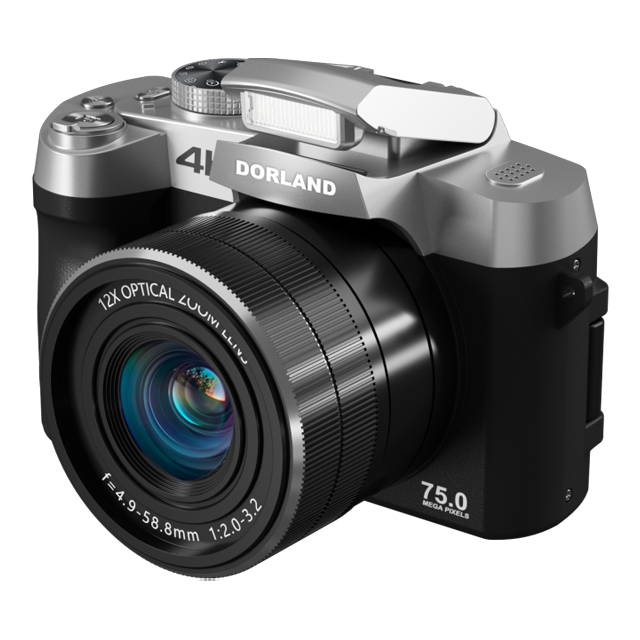

Dorland System Control Tech Co., Ltd. has recently launched the intrinsically safe explosion-proof digital camera EX Camera 01, which adopts 4K ultra high definition recording, has a SONY CMOS 13 megapixel sensor, a maximum camera of 75 megapixels, and a 12x optical zoom. Dynamic shooting is smooth and clear, with precise automatic focusing, presenting far and near scenes clearly, and supporting remote control shooting function
In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
Key Technical Specifications

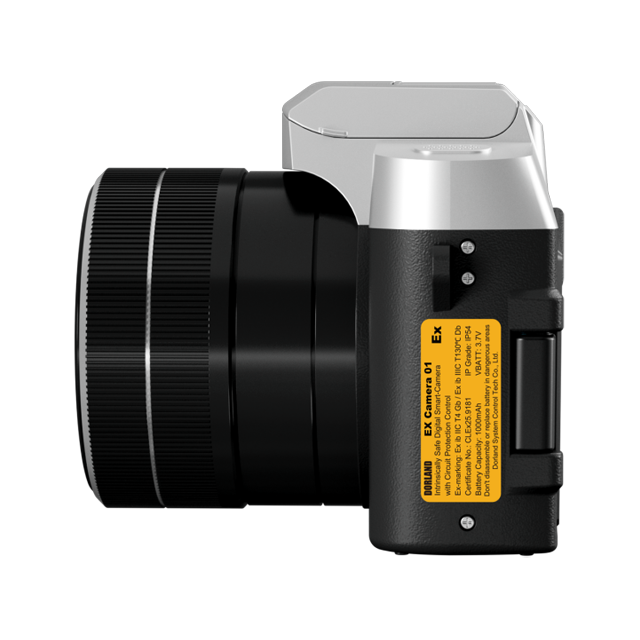

| Ex Marking： | Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db |
| Certificate No.: | CLEx25.4382 |
| Protection level: | IP54 |
| Image sensor: | SONY CMOS 13 megapixel sensor |
| Camera lens: | Optical zoom lens |
| Static image: | Format: JPG Resolution: 3M, 5M, 8M, 12M, 20M, 24M.30M, 48M, 56M, 64M, 75M |
| Video clip: | Format: MP4 Resolution: 4 K_3840X2160p(30FPS), 2.7K_2688X1520p(30FPS), FHD_1920X1080p(60/30FPS), HD_1280x720p(120/60/30FPS |
| WIFI (APP) control: | Support |
| LED fill light: | Shoot/record supplementary light |
| Scheduled photography: | Settings: 2 seconds/5 seconds/10 seconds/15 seconds/30 seconds |

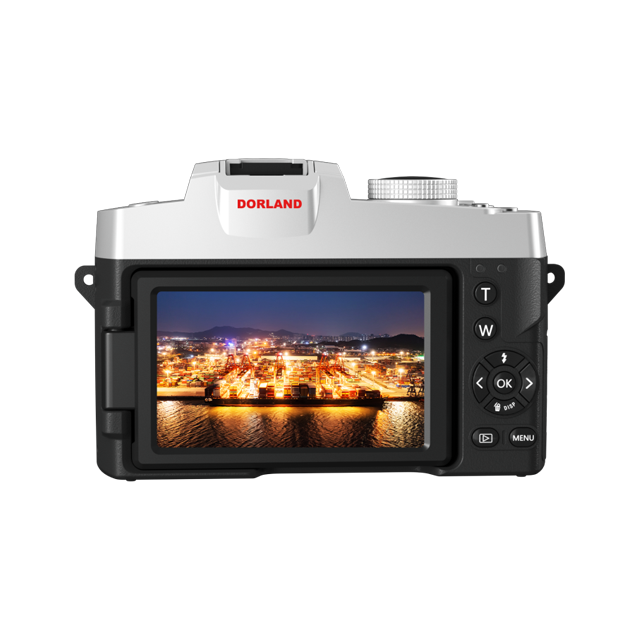

| LCD screen: | 3.0-inch ultra high definition IPS touch screen (16:9) |
| Battery: | 1000mAh / 3.7V |
| Product dimensions: | 122.7*107.5*76.7mm |
| Product weight: | Without battery: 383.8g with battery: 410.2g |
Highlights & Features
Intrinsically Safe Explosion-proof——Suitable for multiple flammable and explosive hazardous environments such as petroleum, chemical, maritime, etc
High megapixel camera——SONY CMOS sensor with 13 million pixels, capable of interpolating up to 75 million pixels
Optical Zoom——12X optical zoom
High resolution——Supports up to 4k recording
Touchable screen——3.0-inch ultra-high-definition touch IPS screen (16:9)
Applications
Suitable for on-site photography, video recording, and recording of the environment in flammable and explosive hazardous environments.
