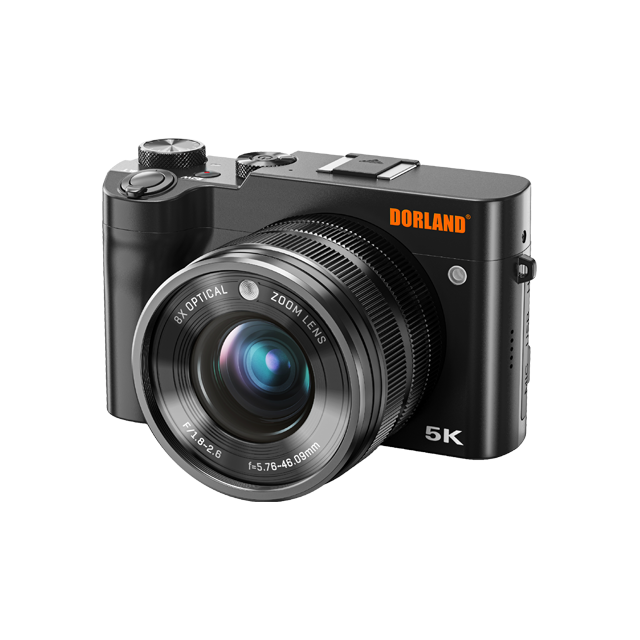

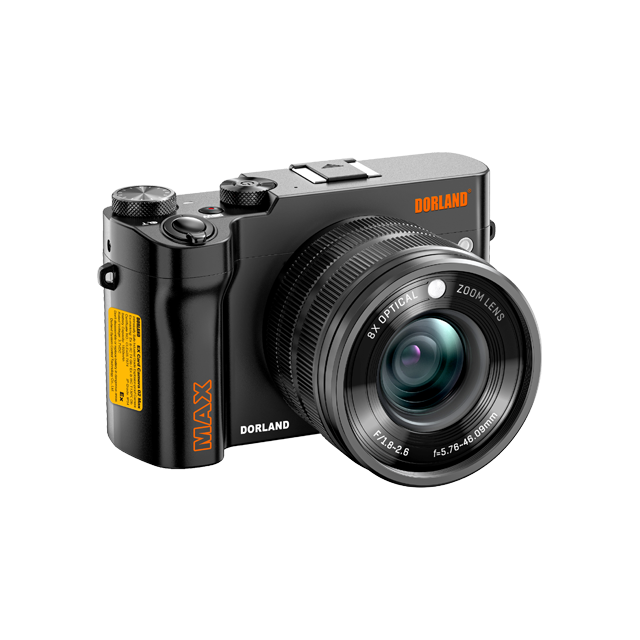

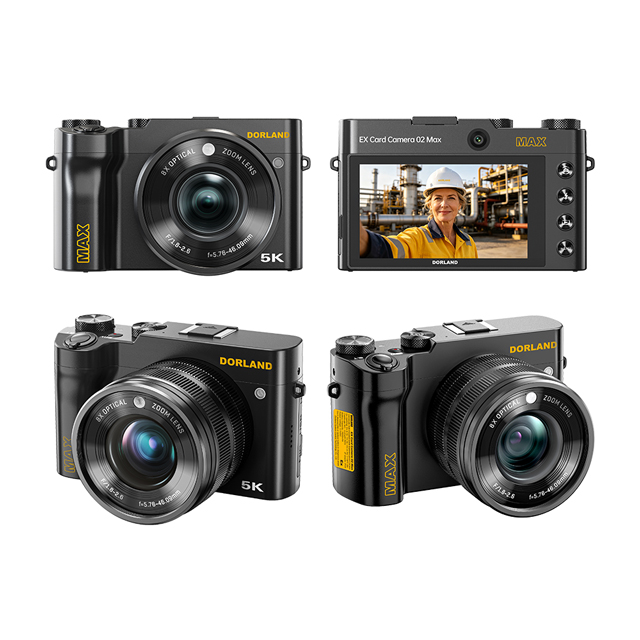

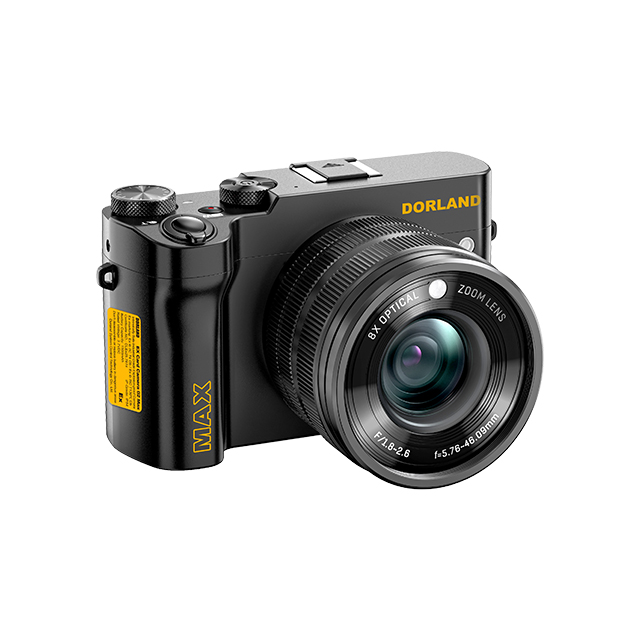

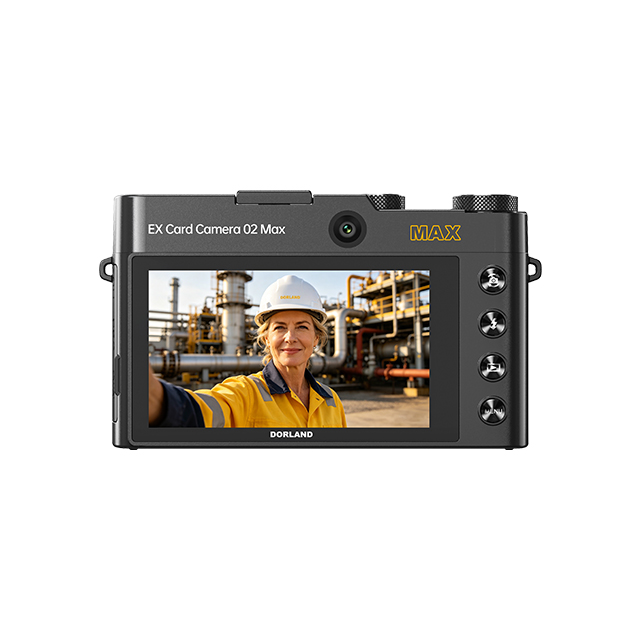

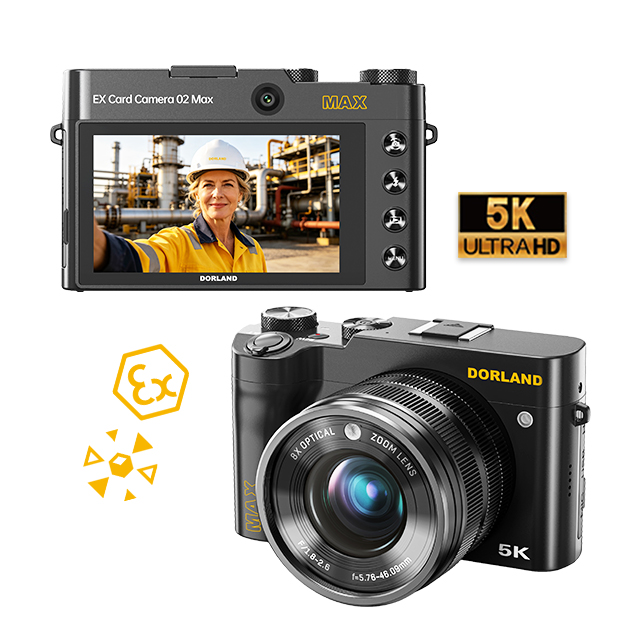

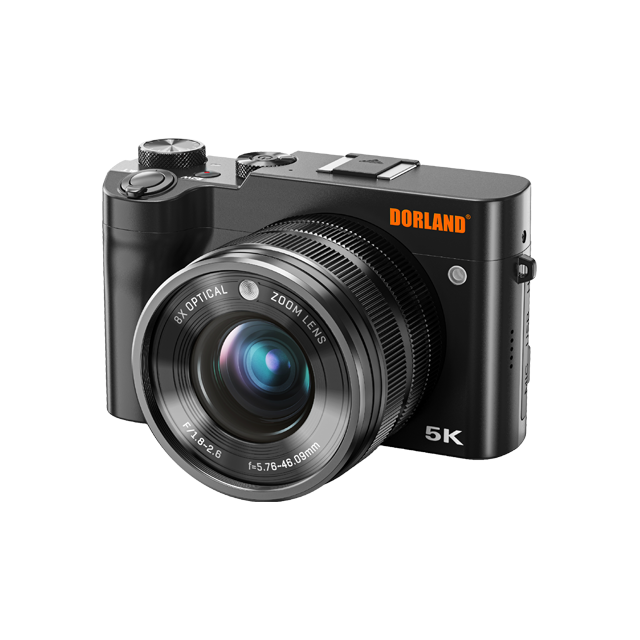

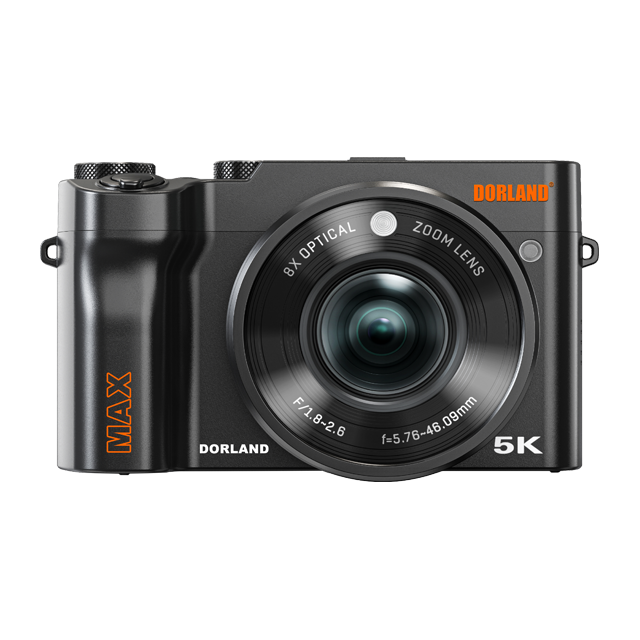

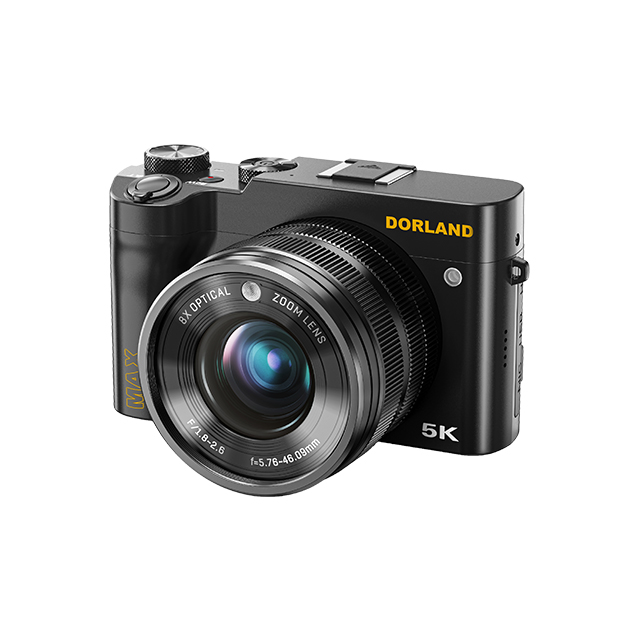

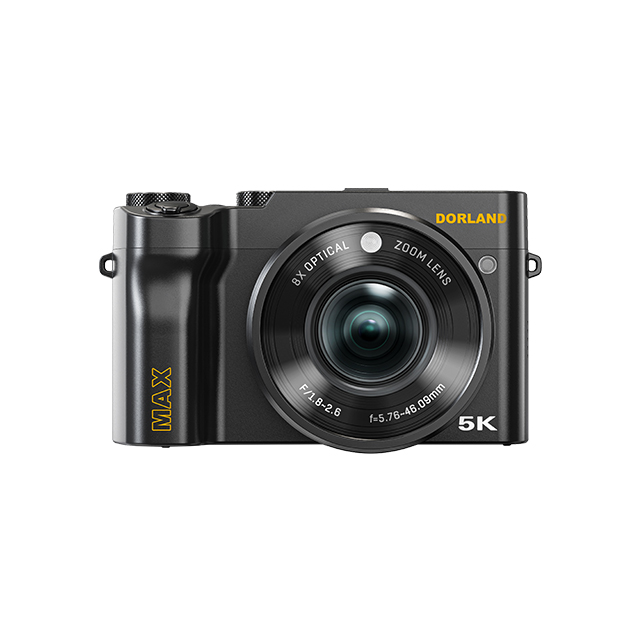

DORLAND System Control Technology Co., Ltd. recently launched Intrinsically Safe Explosion-proof Digital Card Camera EX Card Camera 02 Max, which uses front and rear dual camera lenses (64 million pixels) for easy selfies, supports EIS electronic image stabilization, supports autofocus, and presents clear near and far scenes.
In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.

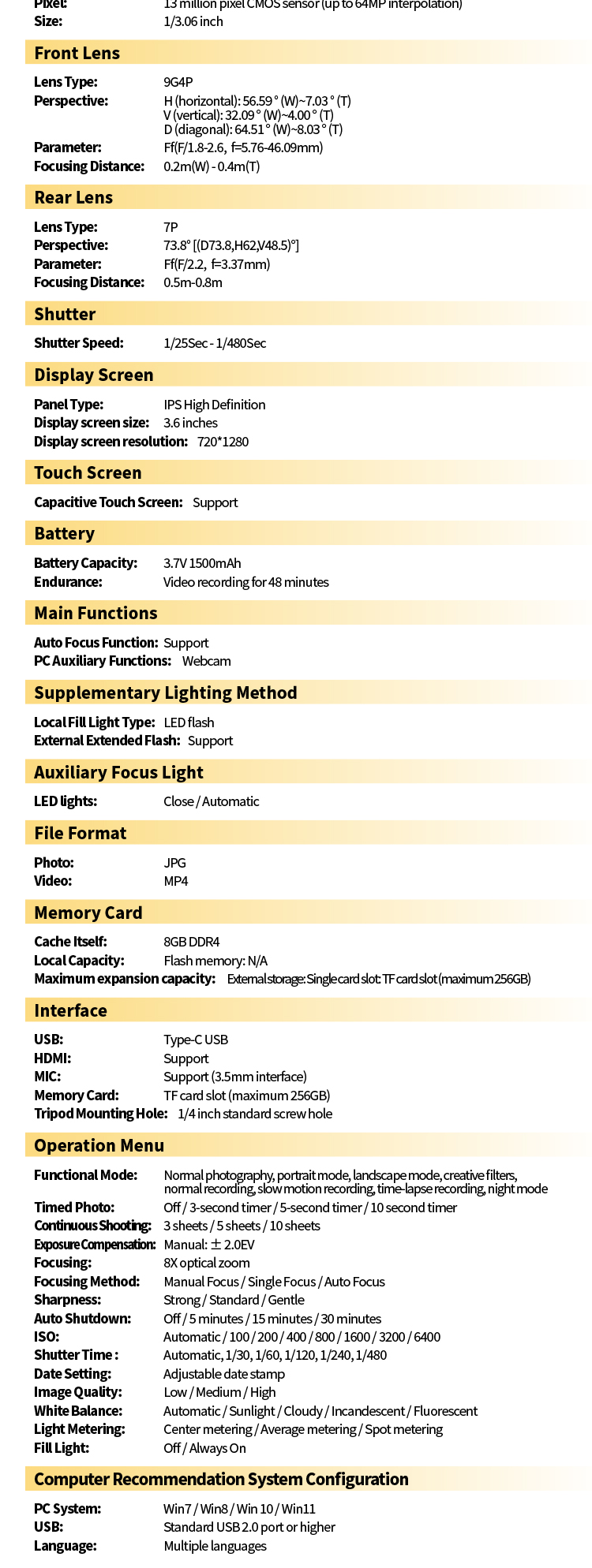

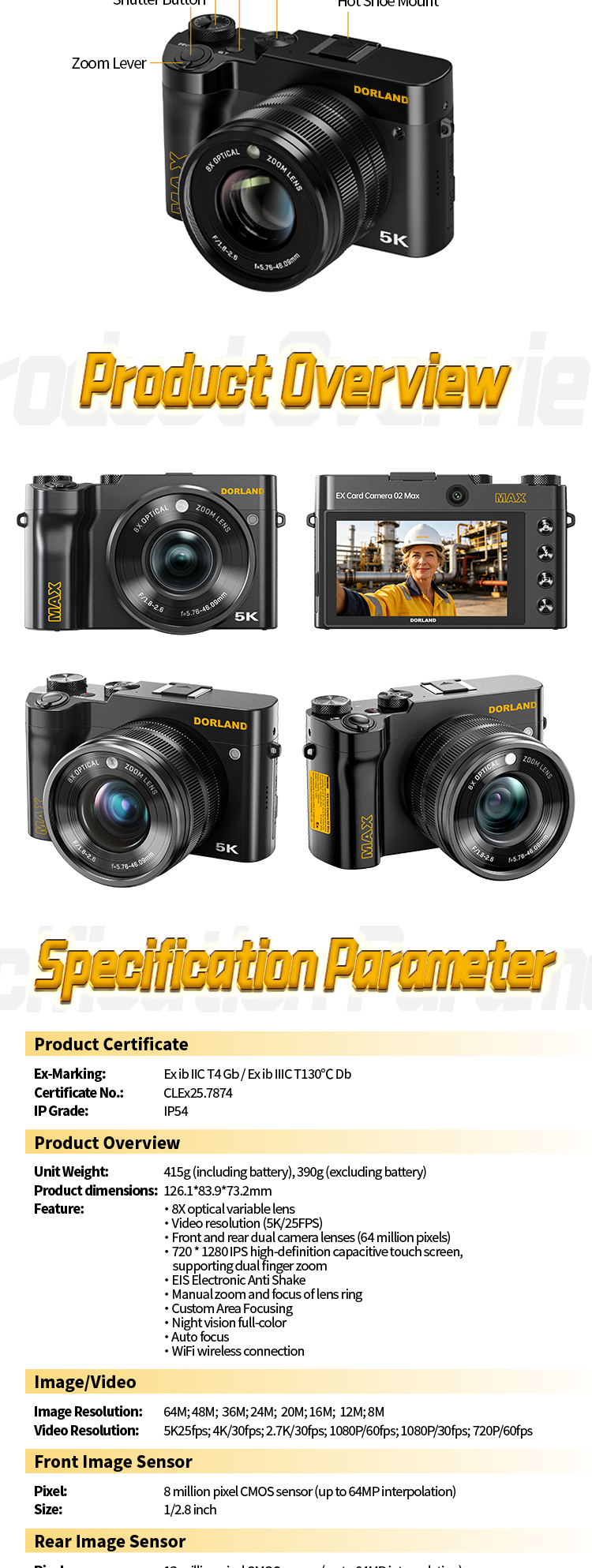

| Explosion-proof mark: | Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db |
| Ex certificate No.: | CLEx25.7874 |
| Protection level: | IP54 |
| Zoom: | 8x optical zoom |
| Image resolution: | 64M; 48M; 36M; 24M; 20M; 16M; 12M; 8M |
| Video resolution: | 5K25fps; 4K/30fps; 2.7K/30fps; 1080P/60fps; 1080P/30fps; 720P/60fps |
| Front image sensor: | 8 million pixel CMOS sensor (up to 64MP interpolation) ,size:1/2.8 inch |
| Rear image sensor: | 13 million pixel CMOS sensor (up to 64MP interpolation) ,size:1/3.06 inch |
| Front camera: | Lens type: 9G4P, focusing distance: 0.2m (W) -0.4m (T) |
| Rear camera: | Lens type: 7P, focusing distance: 0.5m-0.8m |
| Display screen: | Type: IPS high-definition touch screen, size: 3.6 inches, resolution: 720 * 1280 |
| Battery: | 3.7v 1500mAh |
| Auto focus: | Support |
| Supplementary lighting method: | Supports LED flash and external extended flash |
| Auxiliary focus point: | Close/Automatic |
| File format: | Photo: jpg, Video: mp4 |
| Memory card: | Body cache: 8Gb, supports extended TF card (maximum 256GB) |
| Interface: | USB, HDMI, MIC, TF card slot, tripod mounting hole |
| Shutter speed: | 1/25 seconds~1/480 seconds |
| Weight: | 415g (including battery), 390g (excluding battery) |
| Product dimensions: | 126.1*83.9*73.2mm |
