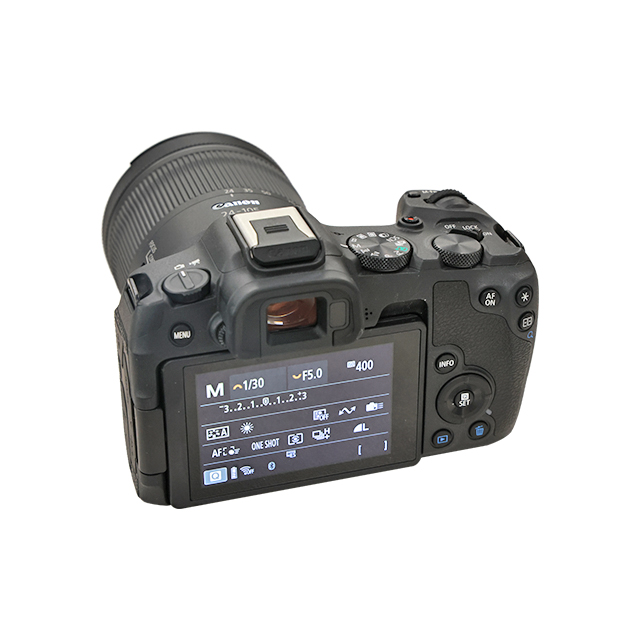

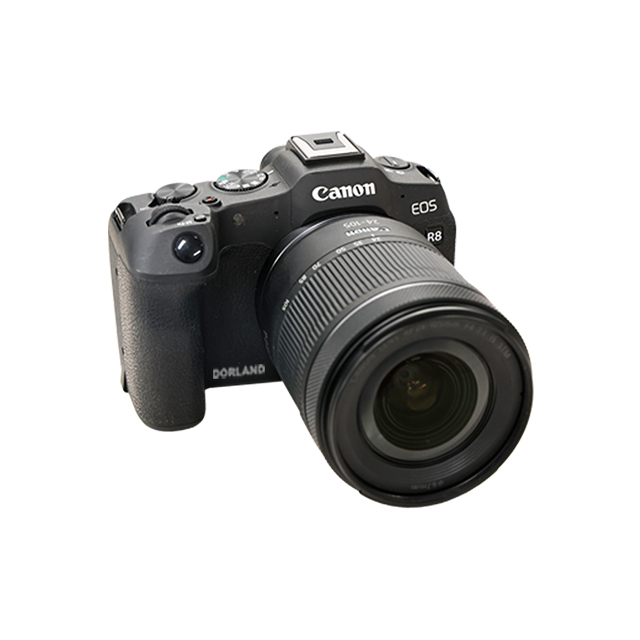

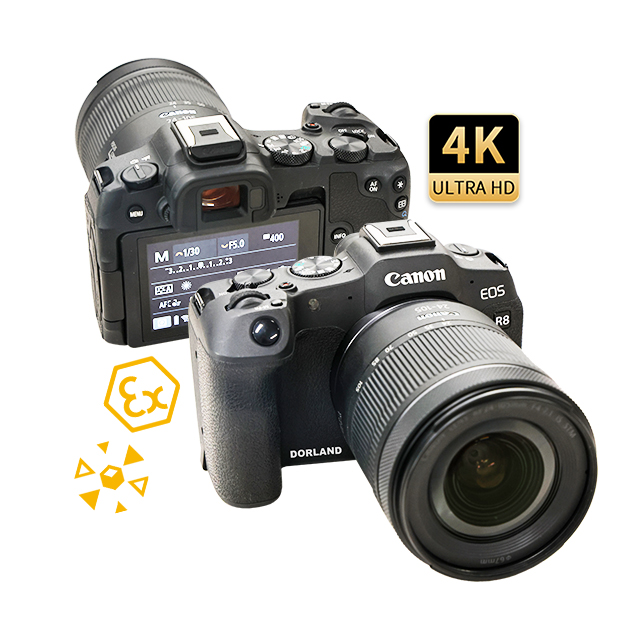

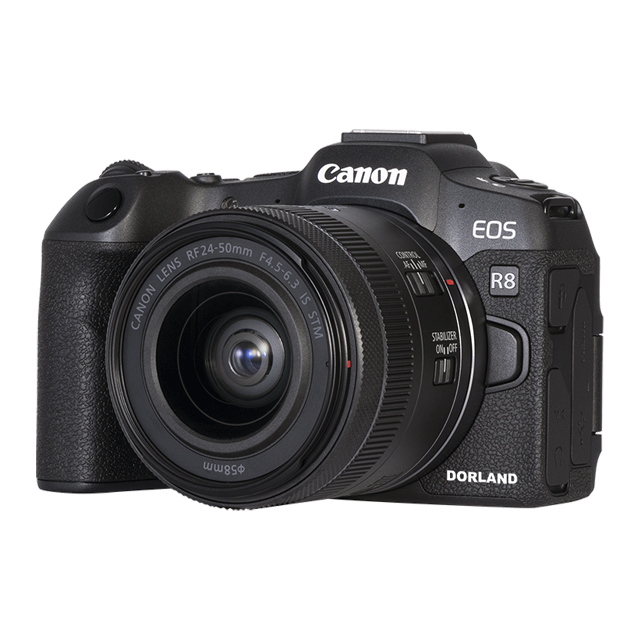

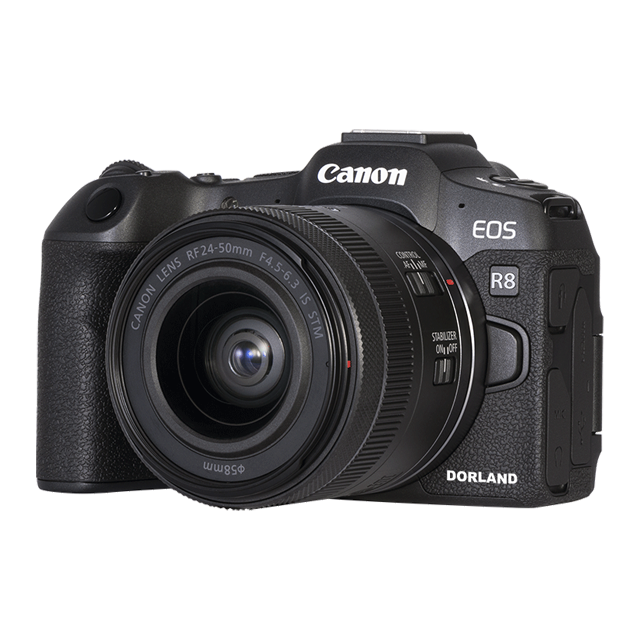

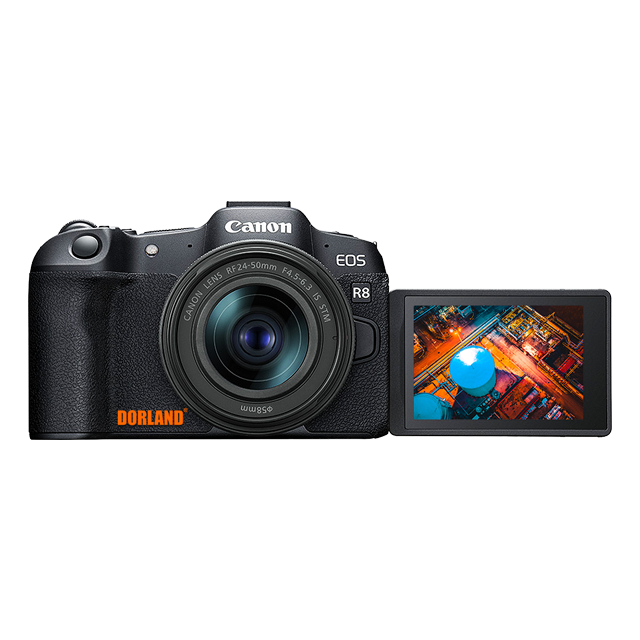

Beijing Dorland System Control Technology Co., Ltd. has recently launched the Intrinsically Safe Digital Smart-Camera with circuit protection control Ex Camera R8, which uses a 24-105mm lens and a new RF mount independently developed by Canon. The optical design is more flexible and easy to achieve high image quality. Approximately 4.4x zoom, covering commonly used focal lengths for daily photography, making it easy to take close-up shots and achieve personalized photo effects. The IS image stabilizer equipped with a maximum shutter speed equivalent to about 5 levels provides strong support for shooting.
In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
Explosion-proof mark:
Ex ib IIC T4 Gb

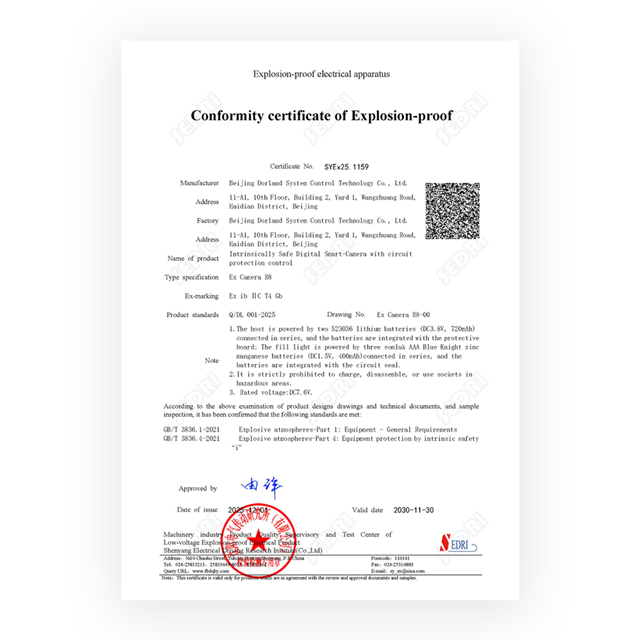

EX certificate number:
SYEx25.1159
Camera type:
Single lens mirrorless digital camera with autofocus/auto exposure
Recording media:
Single card slot, SD/SDHC/SDMC memory card (compatible with UHS-II memory card)
Image sensor size:
Approximately 36 x 24 millimeters

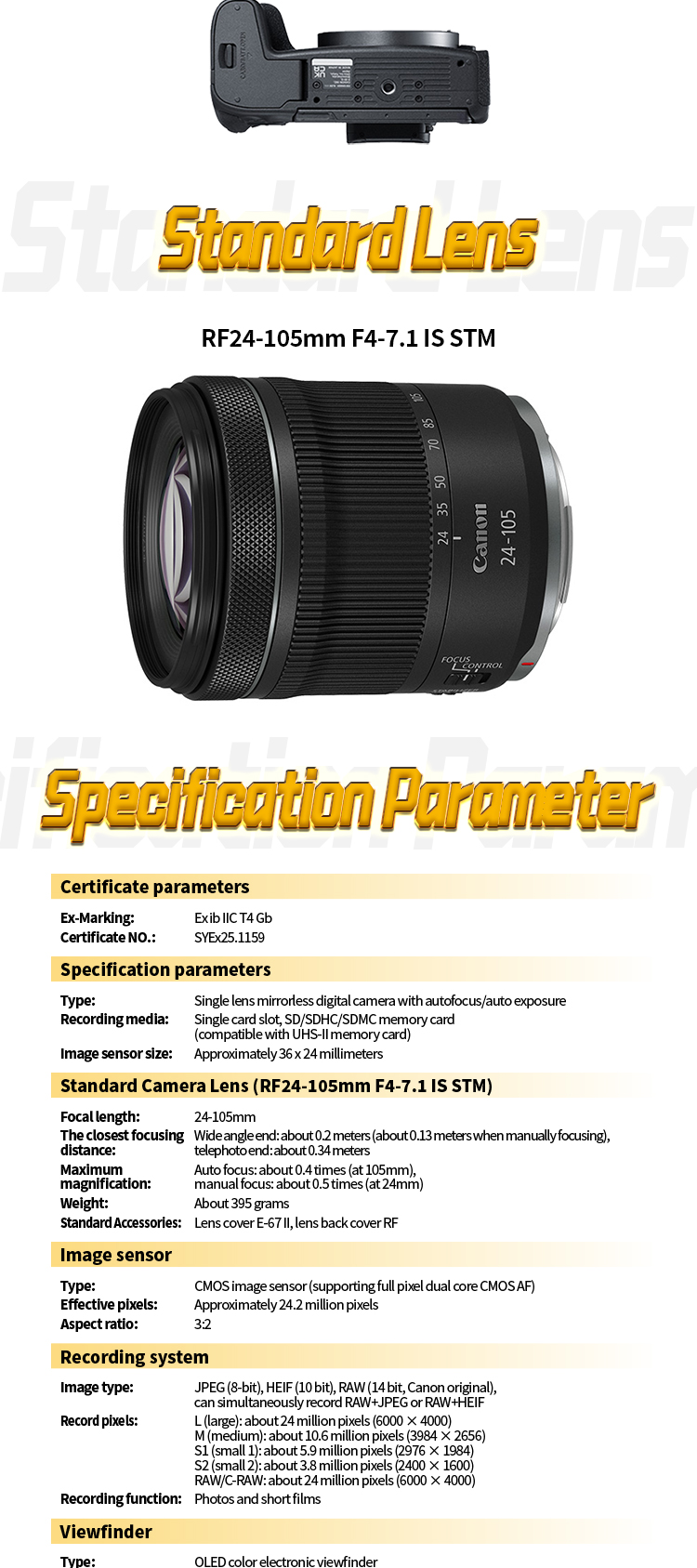

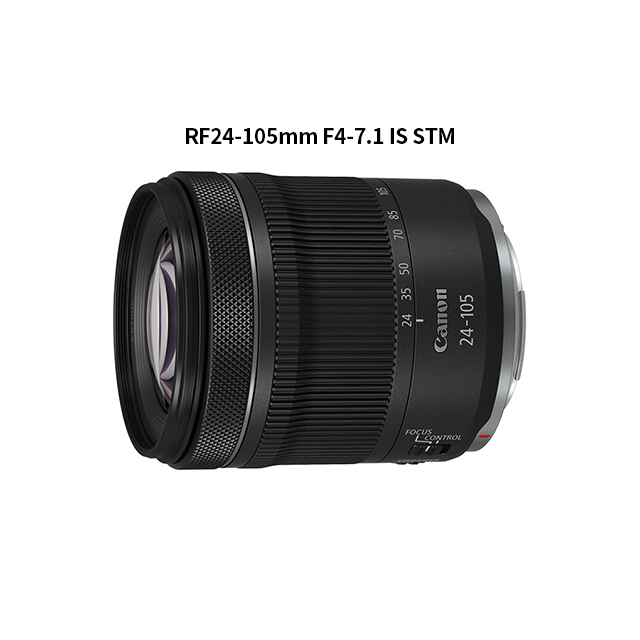

Lens focal length:
24-105mm
Lens structure:
11 groups of 13 pieces
Aperture blades:
7 pieces (circular aperture)
Minimum aperture:
22-40 (adjusted in units of 113 levels), 22-38 (adjusted in units of 1/2 levels)
The closest focusing distance:
Wide angle end: about 0.2 meters (about 0.13 meters when manually focusing), telephoto end: about 0.34 meters
Maximum magnification:
Auto focus: about 0.4 times (at 105mm), manual focus: about 0.5 times (at 24mm)
Drive system:
STM+lead screw type unit

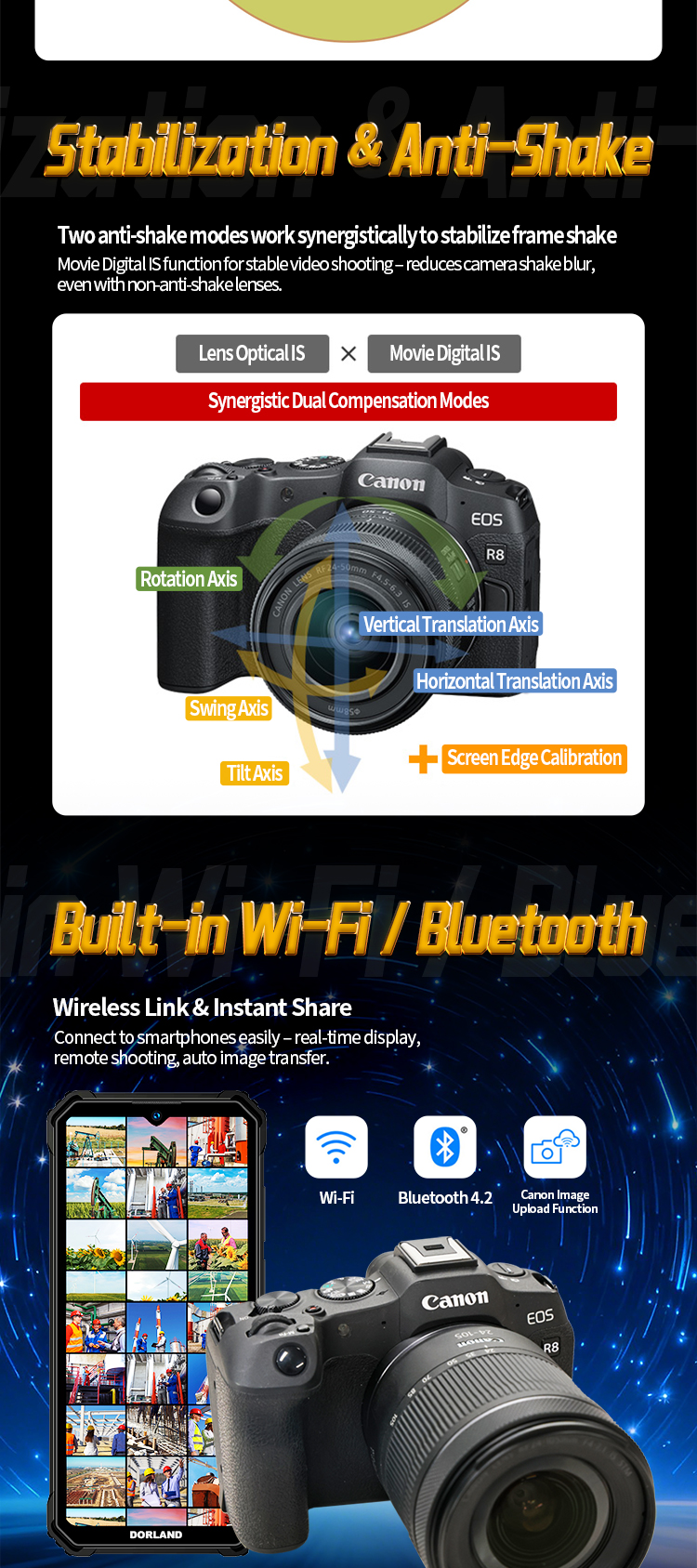

Hand shake compensation effect:
Level 5 (based on CIPA testing standards, 105mm focal length end, when using EOS R)
Filter diameter:
67 millimeters
Maximum diameter and length:
Approximately 76.6x88.8mm
Weight:
About 395 grams
Standard accessories:
Lens cover E-67 Ⅱ lens back cover RF
Image sensor:
Type: CMOS image sensor (supporting full pixel dual core CMOS AF); Effective pixels: approximately 24.2 million pixels; Length to width ratio: 3:2; Dust removal function: automatic, add dust removal data
Record format:
Compatible with camera file system design rules 2.0, supporting time difference information
Image type:
JPEG (8-bit), HEIF (10 bit), RAW (14 bit, Canon original), can simultaneously record RAW+JPEG or RAW+HEIF
Record pixels:
L (large): about 24 million pixels (6000 × 4000), M (medium): about 10.6 million pixels (3984 × 2656), S1 (small 1): about 5.9 million pixels (2976 × 1984), S2 (small 2): about 3.8 million pixels (2400 × 1600), RAW/C-RAW: about 24 million pixels (6000 × 4000)
Autofocus type:
Dual Pixel CMOS AF Phase Difference Detection Method
Auto focus operation:
Single autofocus, servo autofocus, artificial intelligence autofocus
Subject detection:
Capable of (automatic, human, animal, vehicle)
Eye detection:
Capable of detecting people and animals, automatic, right eye, left eye
External fill light (optional):
Color rendering index: ≥ 85%; Three levels of white temperature; Color temperature: 5600K; comes with three double deer AAA blue knight zinc manganese batteries (DC1.5V, 400mAh)
Approximately 461 grams (including battery and memory card)/Approximately 414 grams (body only)
Beijing Dorland System Control Technology Co., Ltd. has recently launched the Intrinsically Safe Digital Smart-Camera with circuit protection control Ex Camera R8, which uses a 24-105mm lens and a new RF mount independently developed by Canon. The optical design is more flexible and easy to achieve high image quality. Approximately 4.4x zoom, covering commonly used focal lengths for daily photography, making it easy to take close-up shots and achieve personalized photo effects. The IS image stabilizer equipped with a maximum shutter speed equivalent to about 5 levels provides strong support for shooting.
In addition, it is also suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
Explosion-proof mark:
Ex ib IIC T4 Gb
EX certificate number:
SYEx25.1159
Camera type:
Single lens mirrorless digital camera with autofocus/auto exposure
Recording media:
Single card slot, SD/SDHC/SDMC memory card (compatible with UHS-II memory card)
Image sensor size:
Approximately 36 x 24 millimeters
Lens focal length:
24-105mm
Lens structure:
11 groups of 13 pieces
Aperture blades:
7 pieces (circular aperture)
Minimum aperture:
22-40 (adjusted in units of 113 levels), 22-38 (adjusted in units of 1/2 levels)
The closest focusing distance:
Wide angle end: about 0.2 meters (about 0.13 meters when manually focusing), telephoto end: about 0.34 meters
Maximum magnification:
Auto focus: about 0.4 times (at 105mm), manual focus: about 0.5 times (at 24mm)
Drive system:
STM+lead screw type unit
Hand shake compensation effect:
Level 5 (based on CIPA testing standards, 105mm focal length end, when using EOS R)
Filter diameter:
67 millimeters
Maximum diameter and length:
Approximately 76.6x88.8mm
Weight:
About 395 grams
Standard accessories:
Lens cover E-67 Ⅱ lens back cover RF
Image sensor:
Type: CMOS image sensor (supporting full pixel dual core CMOS AF); Effective pixels: approximately 24.2 million pixels; Length to width ratio: 3:2; Dust removal function: automatic, add dust removal data
Record format:
Compatible with camera file system design rules 2.0, supporting time difference information
Image type:
JPEG (8-bit), HEIF (10 bit), RAW (14 bit, Canon original), can simultaneously record RAW+JPEG or RAW+HEIF
Record pixels:
L (large): about 24 million pixels (6000 × 4000), M (medium): about 10.6 million pixels (3984 × 2656), S1 (small 1): about 5.9 million pixels (2976 × 1984), S2 (small 2): about 3.8 million pixels (2400 × 1600), RAW/C-RAW: about 24 million pixels (6000 × 4000)
Autofocus type:
Dual Pixel CMOS AF Phase Difference Detection Method
Auto focus operation:
Single autofocus, servo autofocus, artificial intelligence autofocus
Subject detection:
Capable of (automatic, human, animal, vehicle)
Eye detection:
Capable of detecting people and animals, automatic, right eye, left eye
External fill light (optional):
Color rendering index: ≥ 85%; Three levels of white temperature; Color temperature: 5600K; comes with three double deer AAA blue knight zinc manganese batteries (DC1.5V, 400mAh)
