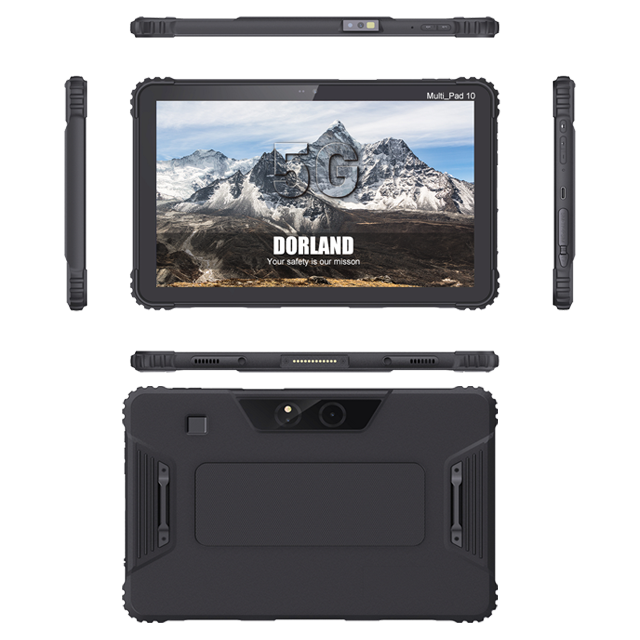

DORLAND System Control Tech Co., Ltd. recently launched Multi_Pad 10, industrial intrinsically safe 5G PAD. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts Android 12.0 operating system and 10.1 inches touch screen design, equipped with front 8 MP + rear 20 MP cameras, its waterproof and dust-proof performance reaches the international IP67 standard.
In addition, we also configured GPS / A-GPS / Beidou / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.
Ex-marking: | Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db |
| IP Grade: | IP67 |
| OS: | Android 12.0 |

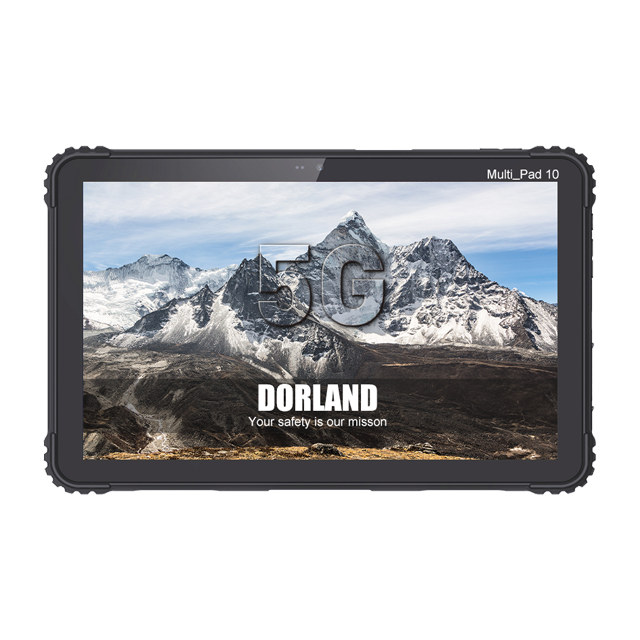

Screen: | 10.1-inch 1920 * 1200 |
Memory: | 6/8GB RAM+128GB/256GB ROM |
CPU: | MT6891 8cores 2.6GHz |

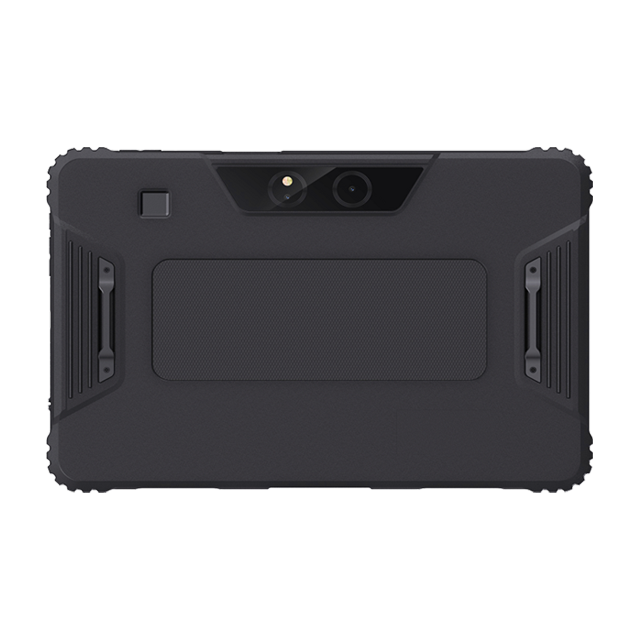

Camera : | Rear 20MP+Front 8MP |
Battery capacity: | 3.8V/8500mAh |
Frequency band: | GSM: B2/3/5/8 TD-SCDMA: B38/39/40/41 WCDMA: B1/2/5/8 CDMA: BC0/BC1 TDD-LTE: B34/38/39/40/41 FDD-LTE: 1/3/5/7/8/20/26/28A/28B 5G: N1/3/5/7/8/20/28/38/40/41/77/78/79 Standard Eurasian PCB compatible with American frequency bands |
Size: | 252.7 * 171.9 * 15.6mm |
Weight: | 830g |
Bluetooth: | BT5.1 |
