Product Overview
The XPad_07 5G Intrinsically Safe Tablet is a rugged explosion-proof Android Pad developed by Beijing Dorland System Control Technology Co., LTD..

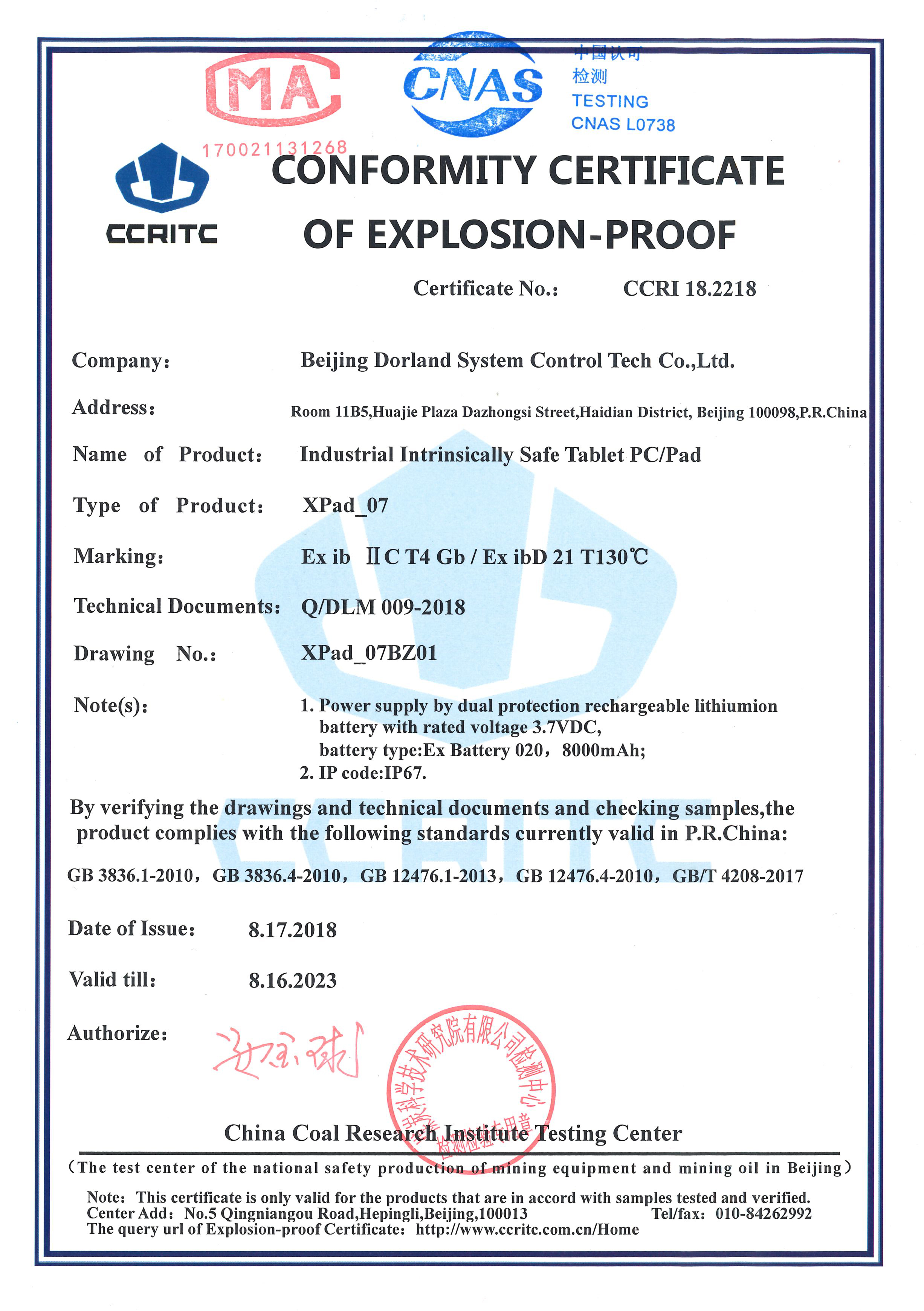

With Ex ib IIC T4 Gb / Ex ib D21 T130°C certification and IP67 waterproof & dustproof rating, this industrial-grade device is built for hazardous environments such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other explosive gas areas.
Equipped with an 8-inch sunlight-readable touchscreen, Qualcomm Snapdragon processor, and 5G connectivity, the XPad_07 5G ensures safe and efficient operation in outdoor construction, pipeline inspection, and industrial fieldwork.
Technical Specifications
| Ex-Marking： | Ex ib IIC T4 Gb / Ex ib D21 T130°C |
| Protection Grade: | IP67 |
| Certification No.： | CCRI 23.2951x |
| OS: | Android 12.0 |
| Touch Lens: | Capacitive Touch screen |
| LCD Parameter: | TFT,8inch, 1280*800/1920*1200 resolution Touchable hd large screen, visible with strong light |
| CPU： | Qualcomm Snapdragon SM4350 2*Kryo 460 Gold(A76) 2.0GHz + 6*Kryo 460 Silver(A55) 1.8GHz |
| Camera: | 13M AF,5M (front) rear camera with flash light |
| Memory: | 6/8GB RAM + 128/256GB ROM |
| Storage Card: | T-Flash |
| Network: | GSM: 850/900/1800/1900 EVDO: BC0 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28 5G NR:N1/N3/N28/N41/N78/N79 |
| Battery Capacity: | 8000mAh |
| Dimensions: | 235*146*13mm |
| Weight: | 598g |
| Bluetooth: | BT5.1 |
| WiFi: | Wifi6-Ready, 802.11ac, a/b/g/n, Frequency 2.4GHz/5GHz |
| NFC: | Yes |
| G-Sensor: | Yes |
| Gyroscope: | Yes |
| Light Sensor: | Yes |
| E-compass: | Yes |
| GPS: | uBlox GPS GALILEO/GLONASS/BEIDOU/GPS |
Applications
The XPad_07 5G Explosion Proof Tablet is designed for industries requiring safe and reliable mobile computing in high-risk areas:
Oil & Gas Industry — Pipeline inspection, drilling data collection, field communication
Chemical Plants — Hazardous area monitoring and equipment testing
Pharmaceutical Manufacturing — Production control, quality data recording
Storage & Logistics — Oil depots, tank farms, supply chain tracking
Construction & Utilities — Outdoor surveying, GIS mapping, infrastructure inspection
Why Choose Dorland XPad_07 5G?
As a trusted provider of intrinsically safe explosion-proof tablets, Dorland combines advanced safety certifications, rugged design, and modern 5G technology.
The XPad_07 5G is the ideal choice for enterprises operating in hazardous environments, ensuring worker safety, productivity, and reliable communication in the field.
