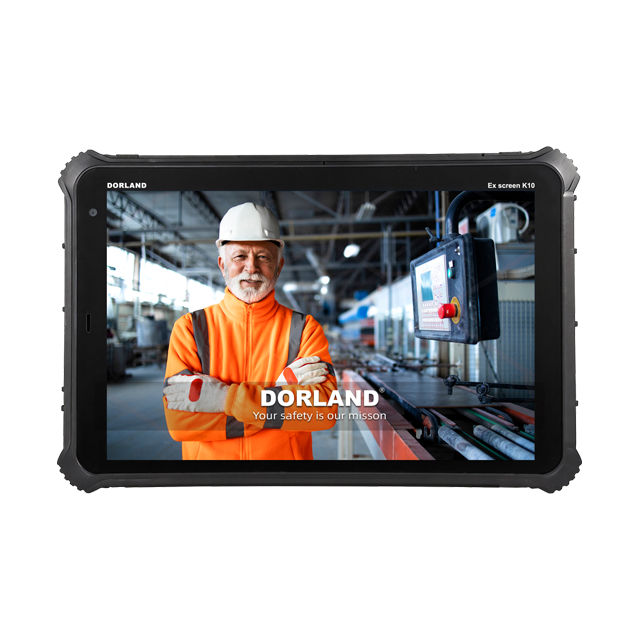

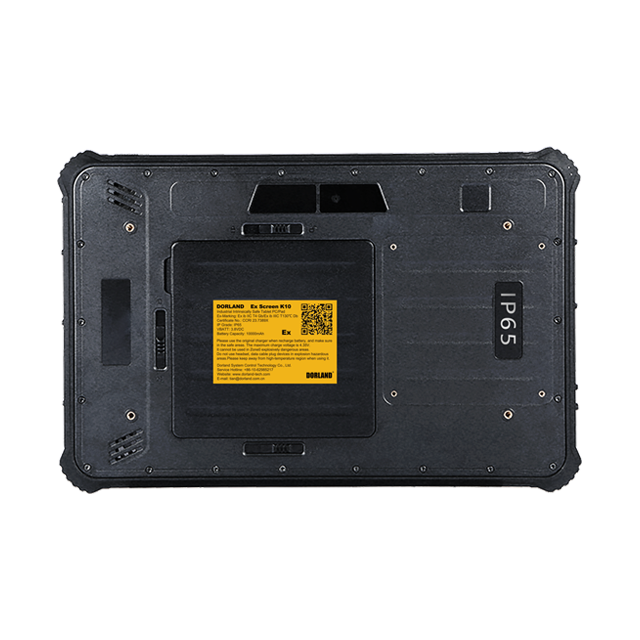

DORLAND System Control Tech Co., Ltd. has recently launched the Industrial Intrinsically Safe Tablet Pad Ex screen K10, which adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. This product adopts a 10.1-inch touch screen design and is equipped with a front 5-megapixel camera and a rear 13 megapixel camera. Its waterproof and dustproof performance meets the international IP65 standard.
In addition, we have also equipped it with various functions suitable for outdoor construction, pipeline inspection, etc., such as domestic dual frequency single Beidou, which can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
| Ex-Marking: | Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db |
| Certificate NO.: | CCRI 23.7389X |
| IP Grade: | IP65 |
| CPU: | RK3588 4xArm Cortex-A76 2.4GHz 6xArm Cortex-A55 1.8GHz |
| Storage: | RAM 8/16GB+ROM 128/256/512GB/1TB |
| OS: | Galaxy Kirin (V10) Defense Edition/Desktop Edition, Android 14 System, Ubuntu 22.04 System |
| Screen: | 10.1-inch IPS 16:10 Resolution: 1200 * 1920 |
| Camera: | Front camera 5MP fixed focus camera Rear camera 13MP autofocus camera, flash |
| Battery: | Replaceable polymer lithium battery 10000 mAh/3.8V with a battery life of ≥ 6h (1080P+50% brightness) |
| Dimensions: | 277.48 * 182.74 * 21.5mm |
| Weight: | Approximately 1018g |
| Bluetooth: | BT5.3 (BLE) class1 Transmission distance: 10m |
| WIFI: | 802.11 (a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI |
| Frequency band: | 5G/4G optional LTE:B1/2/3/4/5/7/8/12/13/20/25/26/28/34/38/39/40/41/66 NR:N1/2/3/5/7/8/12/20/25/28/38/40/41/66/77/78/79 |
| Satellite positioning: | Domestic dual frequency single Beidou L1+L5 |
| Optional modules: | NFC, fingerprint, ultra-high frequency, ID card, high-frequency RFID&low-frequency, 2D scanning head |
