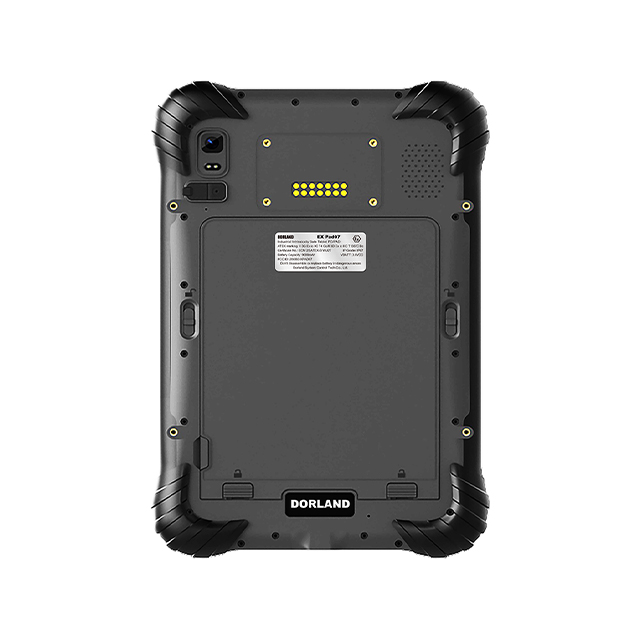

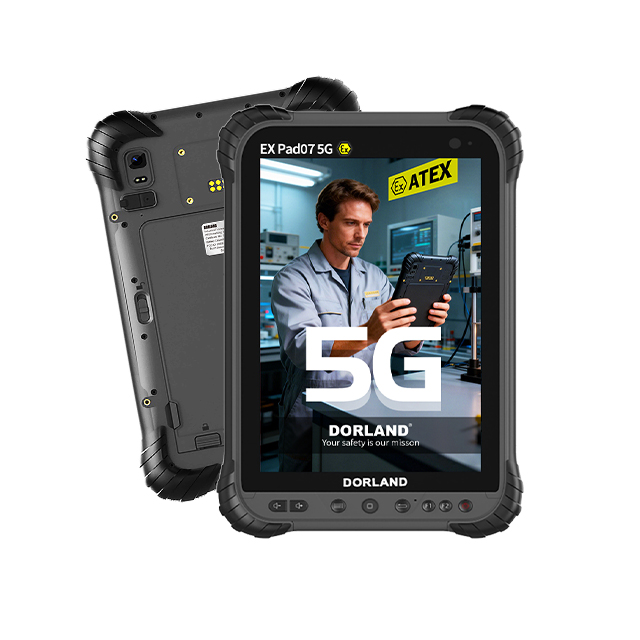

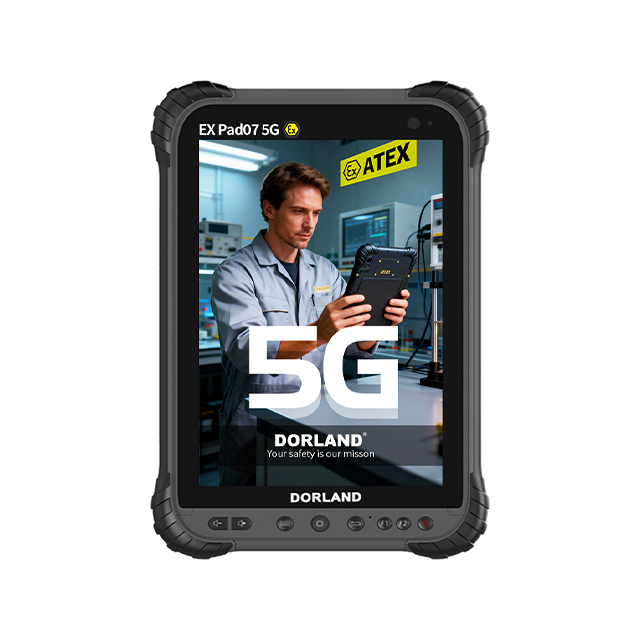

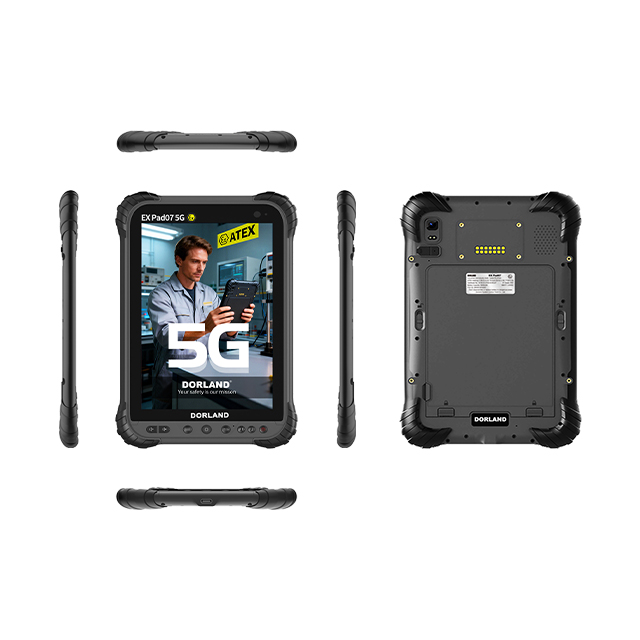

Developed by Beijing Dorland System Control Technology Co., LTD., the Industrial Intrinsically Safe Tablet PC/PAD EX Pad 07 5G (ATEX) adopted advanced technology of Germany with intrinsically safe circuit, 8.0” touch screen and 5Megapixel (Front Camera)+13Megapixel (Rear Camera with Auto Focus) camera(optional 8Megapixel (Front Camera)+16Megapixel (Rear Camera with Auto Focus) camera). Its waterproof and dustproof performance can meet the IP67 standards.
In addition, built-in GPS+Beidou+Glonass+Galileo+AGPS+SBAS, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc.. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

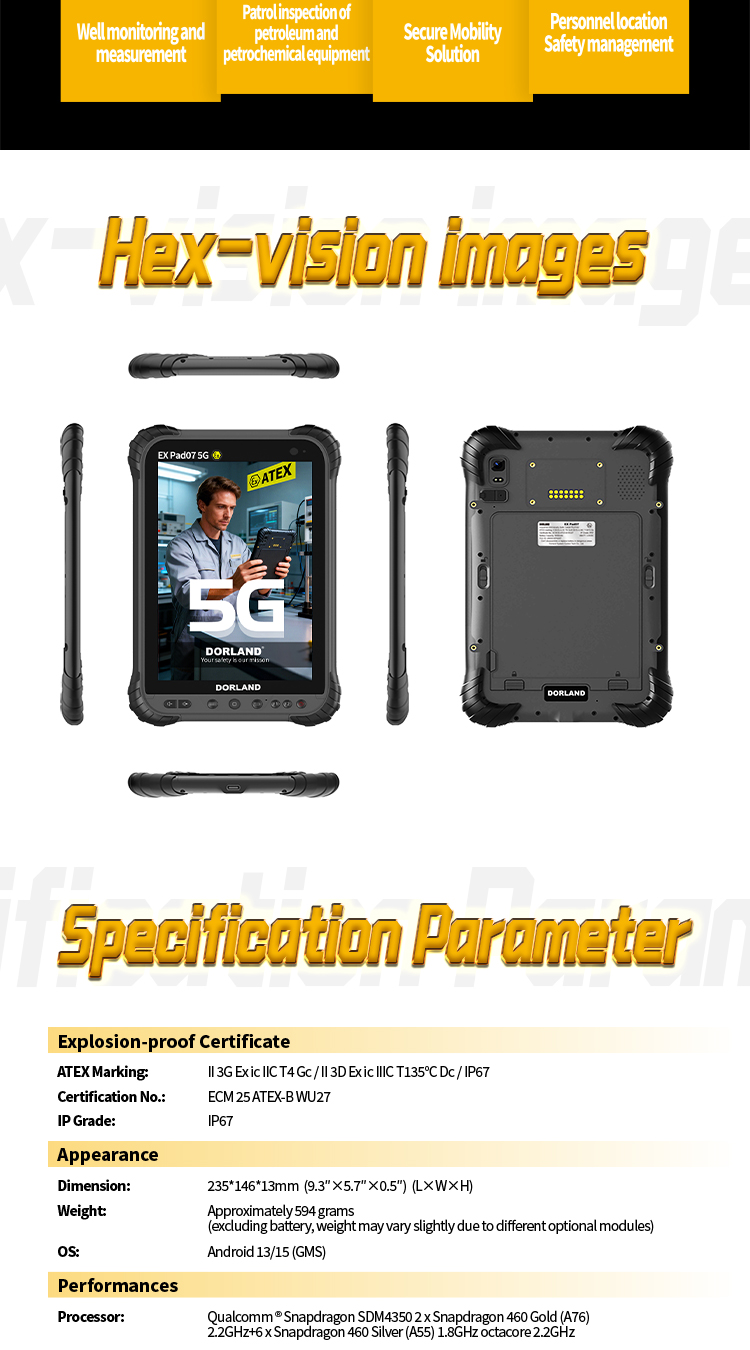

ATEX marking:
II 3G Ex ic IIC T4 Gc/II 3D Ex ic IIIC T135°C Dc/IP67

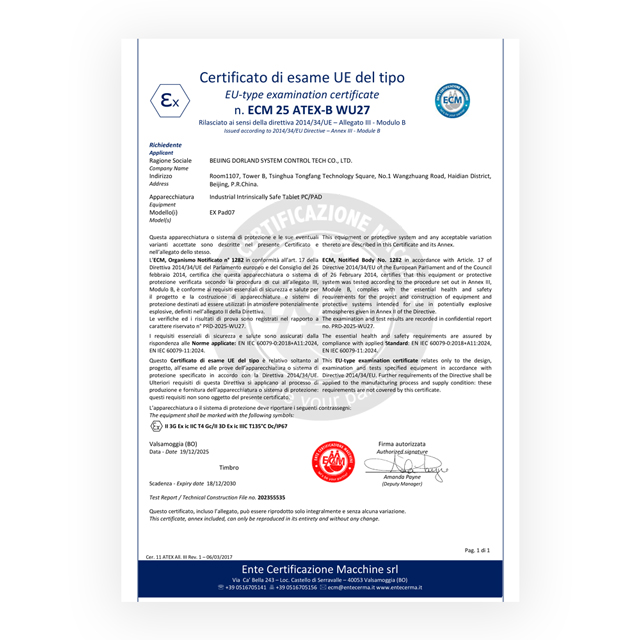

Certificate NO.:
ECM 25 ATEX-B WU27
IP Grade:
IP67
OS:
Android 13.0/15.0 (GMS)

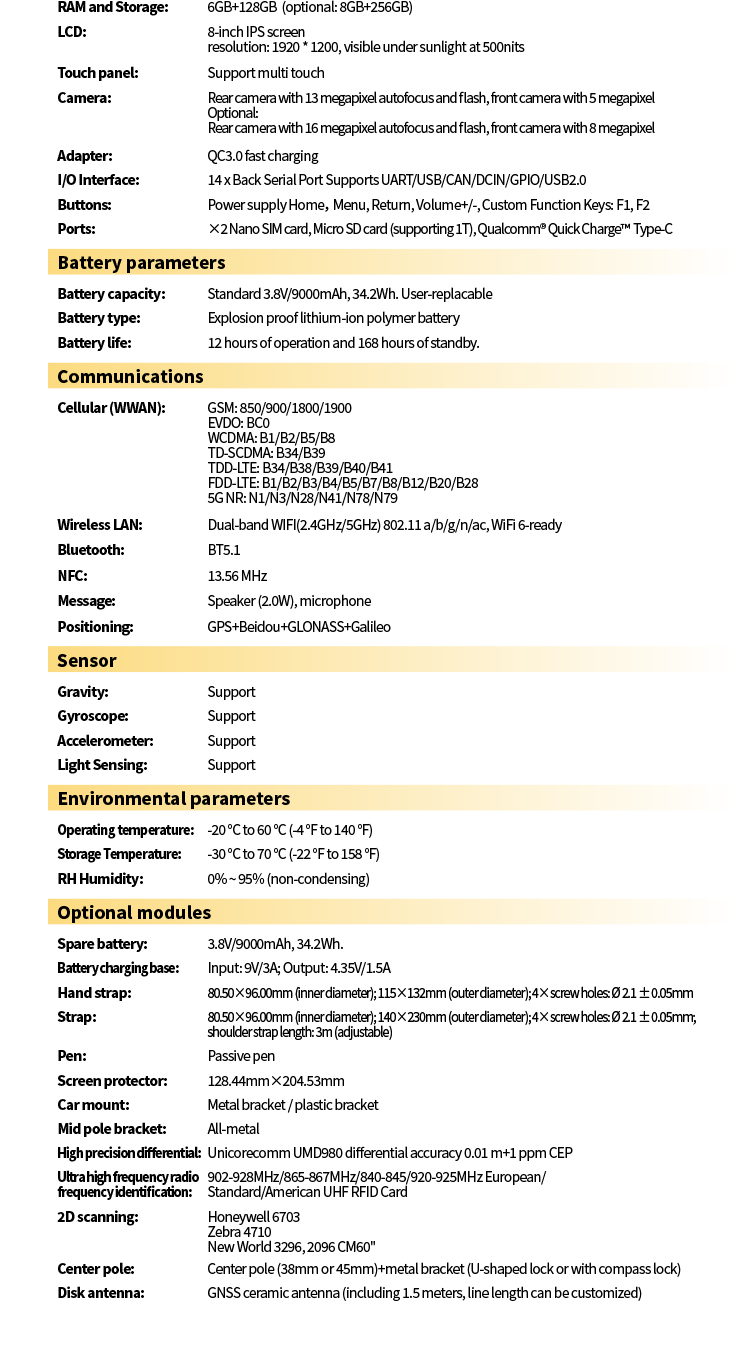

Processor:
Qualcomm ® Snapdragon SDM4350 Eight Core 2.2GHz
Screen:
8-inch IPS screen resolution: 1920 * 1200, visible under sunlight at 500nits
Memory:
6GB/128GB Optional: 8GB/256GB
Camera:
Rear camera with 13 megapixel autofocus and flash, front camera with 5 megapixel
Optional: Rear camera with 16 megapixel autofocus and flash, front camera with 8 megapixel
Battery capacity:
Standard 3.8V/9000mAh, 34.2Wh, detachable, supports tool free replacement
Supported frequency bands:
GSM: 850/900/1800/1900
EVDO: BC0
WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39
TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28
5G NR: N1/N3/N28/N41/N78/N79
Size:

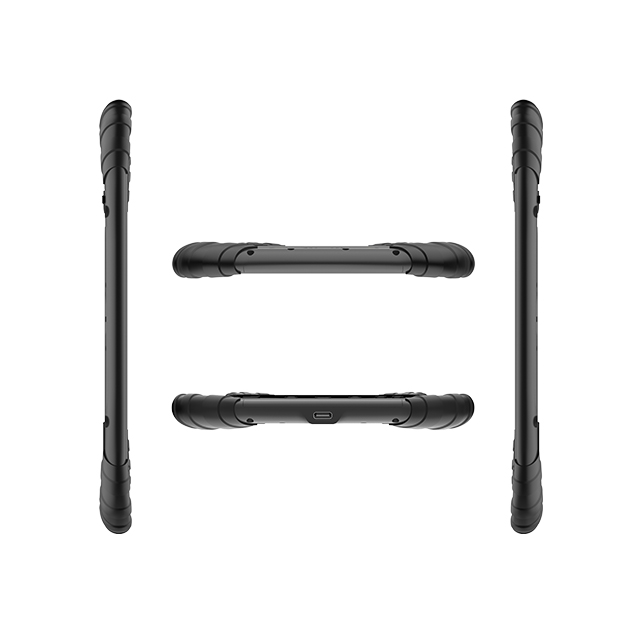

235mm * 146mm * 13mm
Weight:
Approximately 594 grams including battery
Bluetooth:
Bluetooth 5.1
WiFi:
Dual band WIFI (2.4GHz/5GHz) 802.11 a/b/g/n/ac
NFC:
Supports
Sensors:
accelerometer/light sensor
GPS:
Standard configuration: Four star positioning: Qualcomm M10N, Beidou/GPS/Galileo/GLONASS
Optional: Single Beidou satellite positioning module, UMD220
