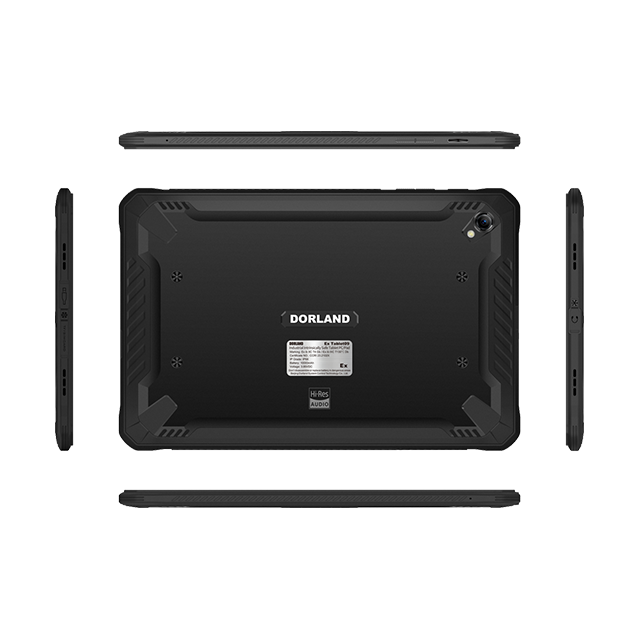

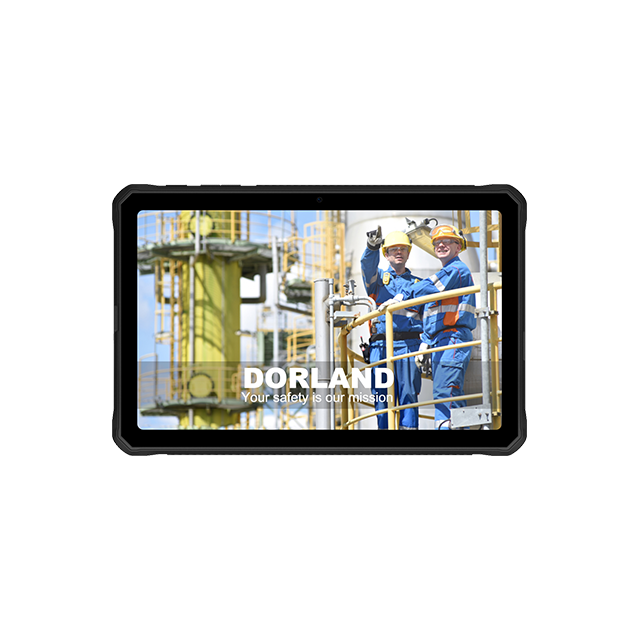

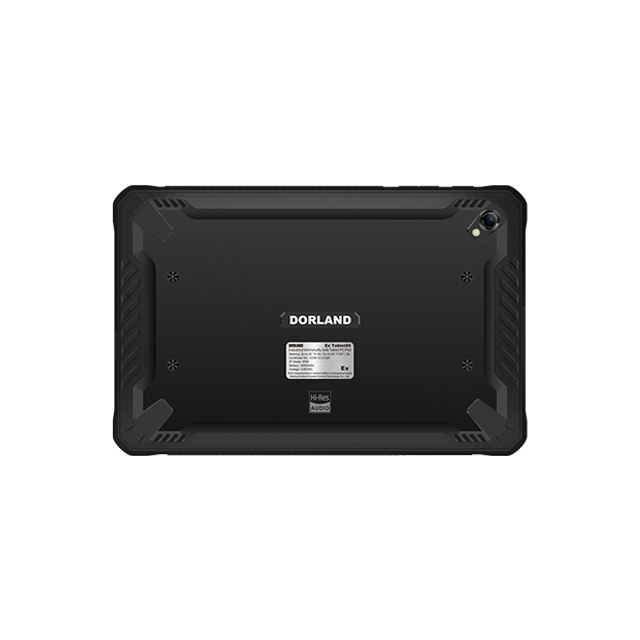

DORLAND System Control Tech Co., Ltd. recently launched Ex Tablet 09, intrinsically safe intelligent industrial-grade explosion-proof tablet PAD. It adopts advanced technology and intrinsically safe circuit design, with a strong appearance and strong body. This product adopts 10.36 inch touch screen design, 9000mAh super big battery, equipped with front 16 MP + rear 20 MP cameras, its waterproof and dust-proof performance reaches the international IP68 standard.
In addition, we also configured GPS / Beidou / Galileo / GLONASS, altitude measurement, compass and other functions suitable for outdoor construction and pipeline inspection, which can cooperate with OA office system, patrol positioning system and data acquisition system And other applications. It is especially suitable for hazardous explosion environment, such as petroleum, chemical, pharmaceutical, oil depot, tank farm and other dangerous places with combustible and explosive gas, which is convenient for users to communicate with production and scheduling in time.
Ex-marking: | Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db |
Certificate NO.: | CCRI 23.2102X |
IP Grade: | IP68 |
OS: | Android 13.0 |
Screen: | 10.36 inch IPS screen 1200*1920 |
Memory: | 8GB RAM+128GB ROM,(RAM expanded 8+3,8+5,8+7 ) |
CPU: | MT8781 8 core 2.2GHz |
Cameras: | Front 16 MP + Rear 20 MP |
Battery: | 9000mAh |
Frequency band: | GSM:B2/B3/B5/B8 WCDMA:B1/2/4/5/8 FDD:B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66/71 TDD:B34/38/39/40/41 EDGE/GPRS: SUPPORT |
GPS: | Beidou,Galileo,Glonass,GPS |
Bluetooth: | BT 5.2 |
WIFI: | Support WiFi6 |
Dimension: | 258*169*13.5mm |
Weight: | 1030g |
