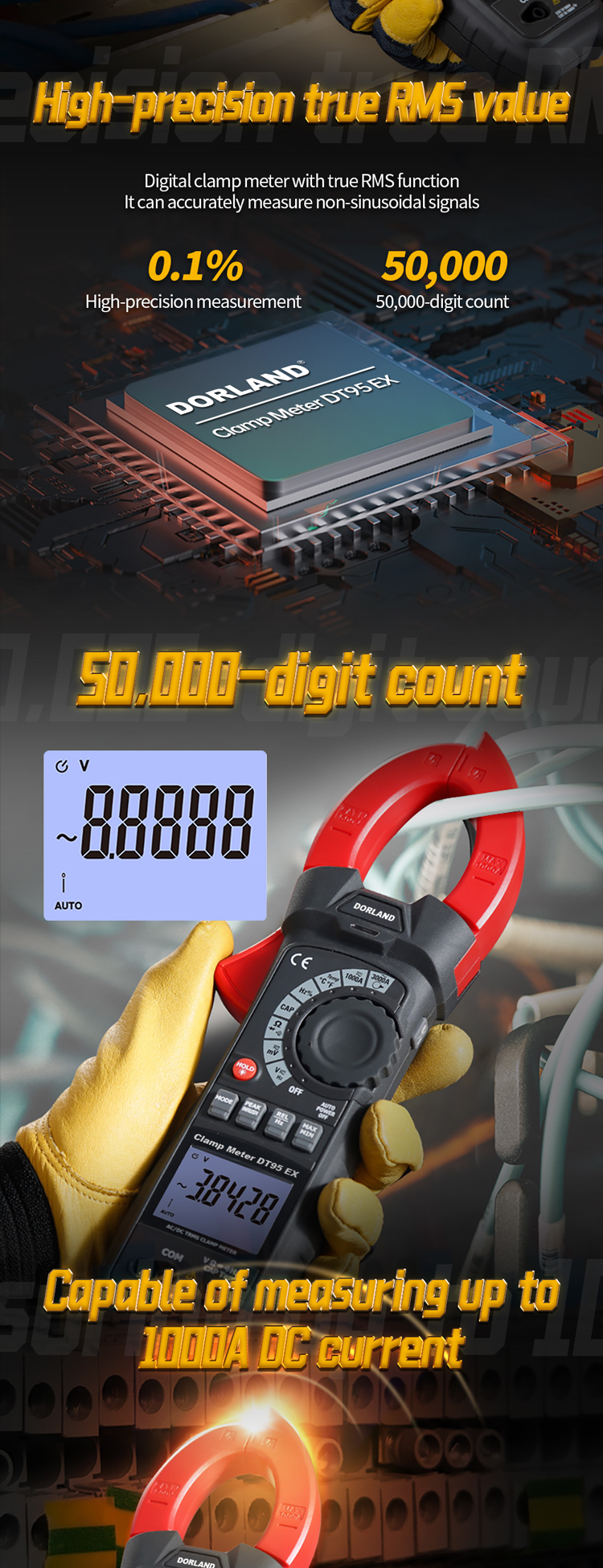

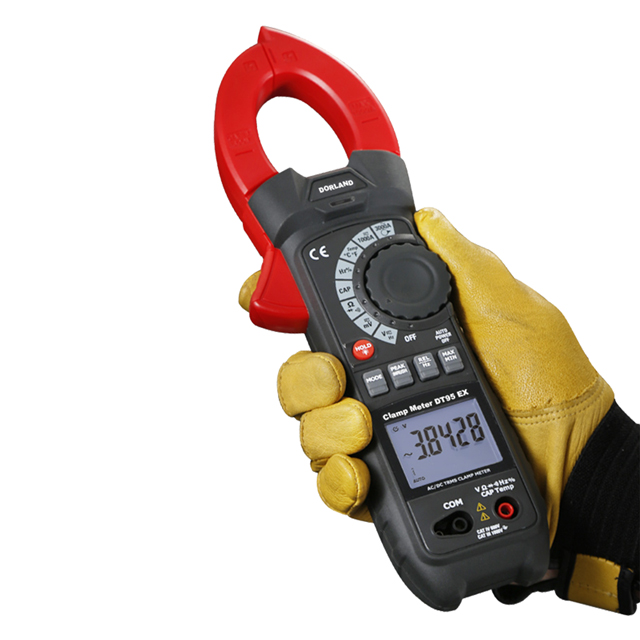

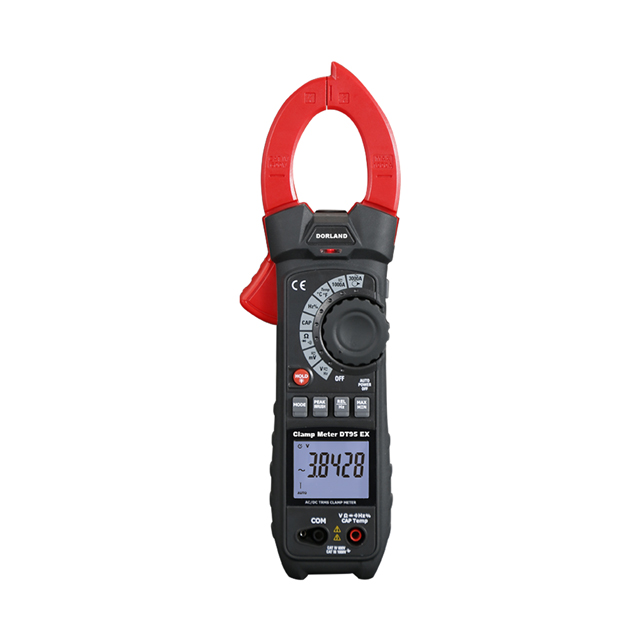

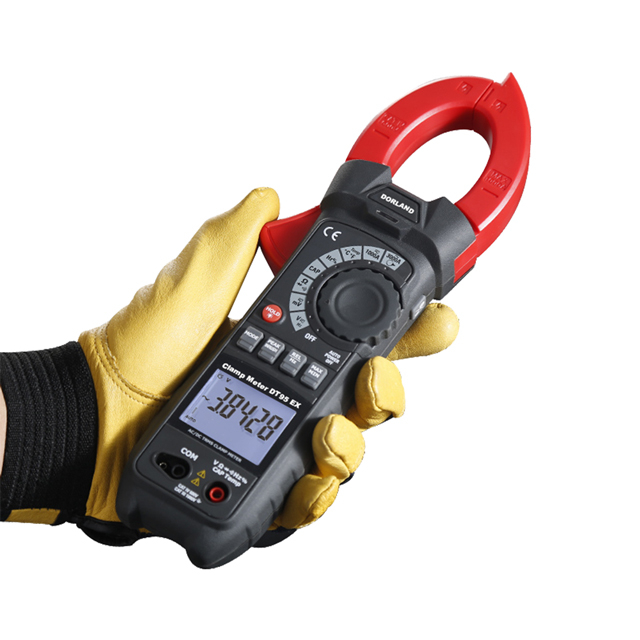

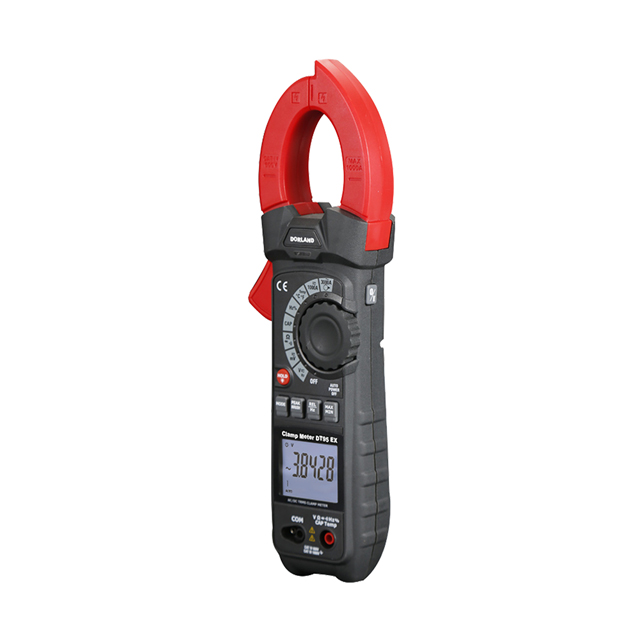

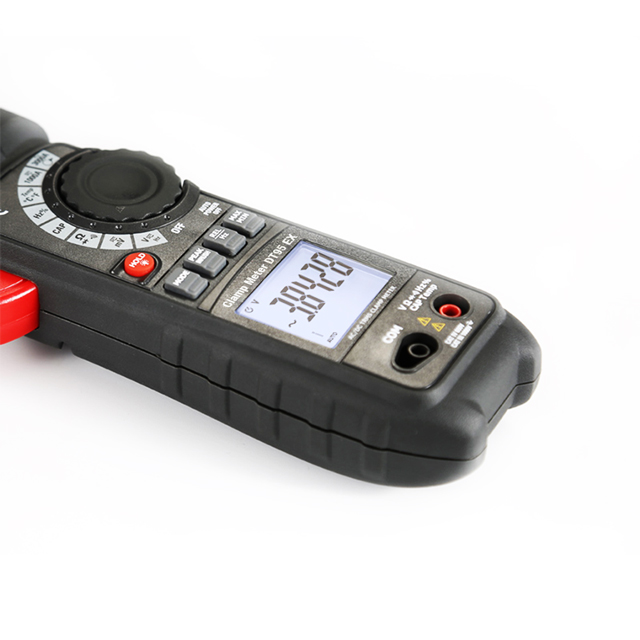

Dorland System Control Tech Co., Ltd. has recently launched the Intrinsically Safe Explosion-proof Digital Clamp Meter-Clamp Meter DT95 EX, which can measure up to 1000A DC current and up to 3000A AC current with true effective value clamp. Other functions include AC and DC voltage, resistance, continuity, capacitance, frequency, duty cycle, temperature, and diode testing. The built-in flashlight and non-contact AC voltage detector provide more convenience. Bluetooth communication allows reading to be displayed and stored on mobile devices.
In addition, it is also suitable for outdoor construction, pipeline inspection, etc, and can be used in conjunction with various applications such as OA office systems, data collection systems, etc, Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.

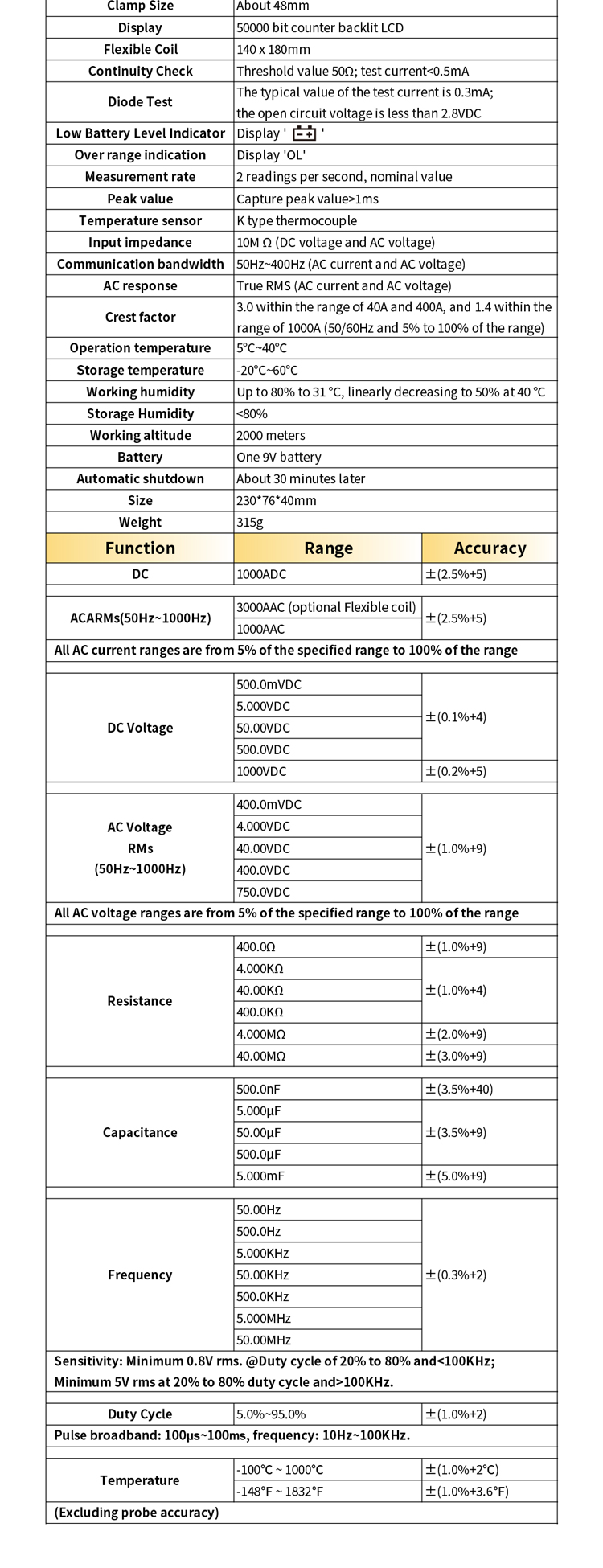

Ex-Marking:
Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Certificate No.:
SYEx25.01128
Clamp size：
≈48mm
Display：
50000 bit count backlight LCD
Low battery indicator:
Display "Occupy"
Over range indication:
Display "OL"
Measurement rate:
2 readings per second, nominal value

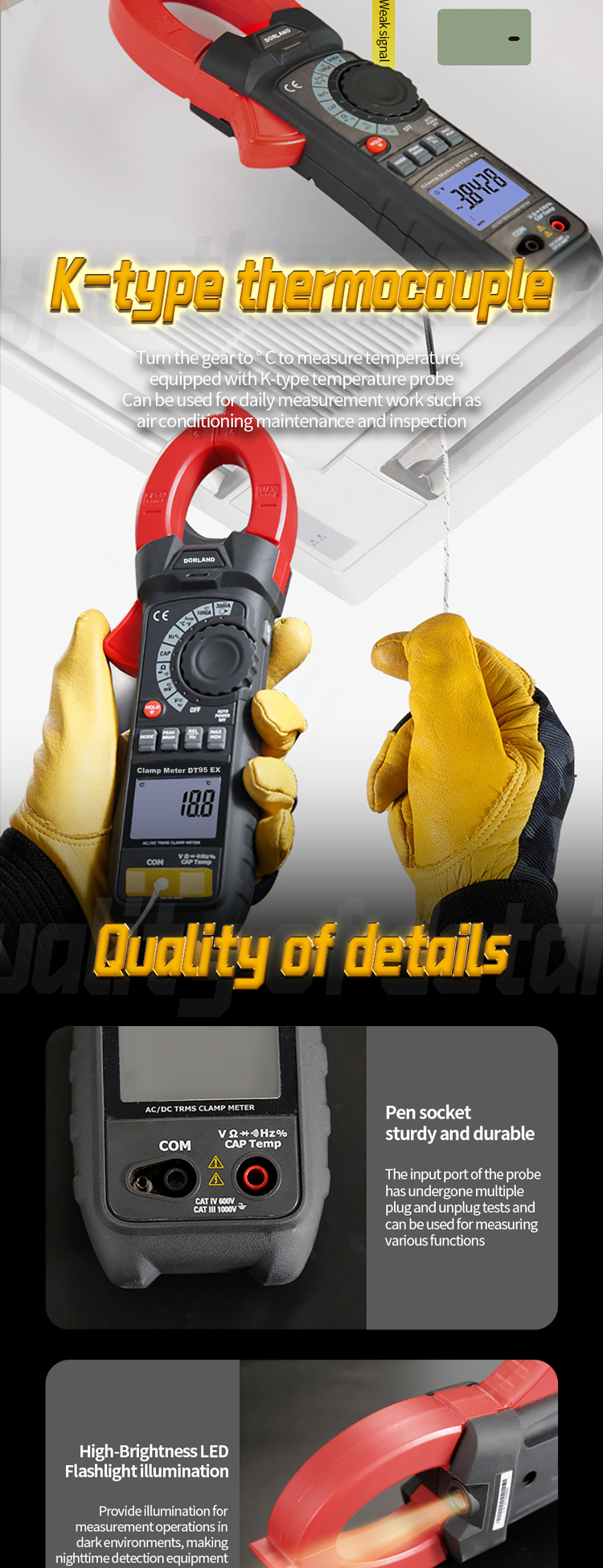

Working temperature:
5°C~40°C
Storage temperature:
-20°C~60°C
Working humidity:
Up to 80% to 31℃, linearly decreasing to 50% at 40°C
