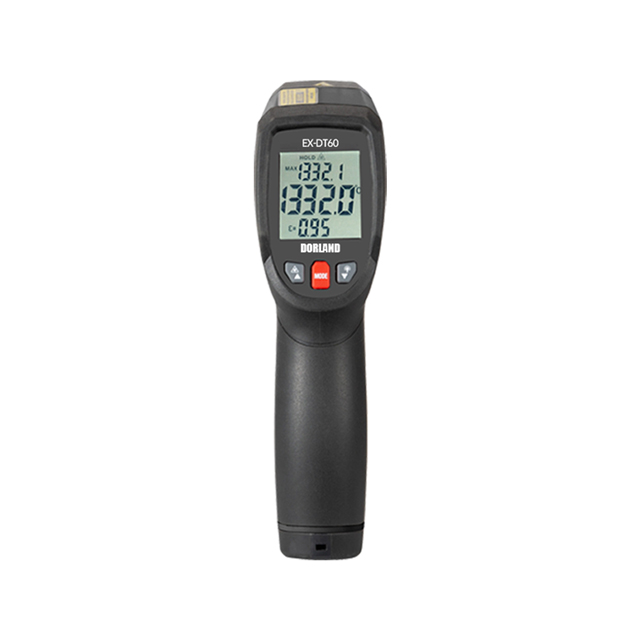

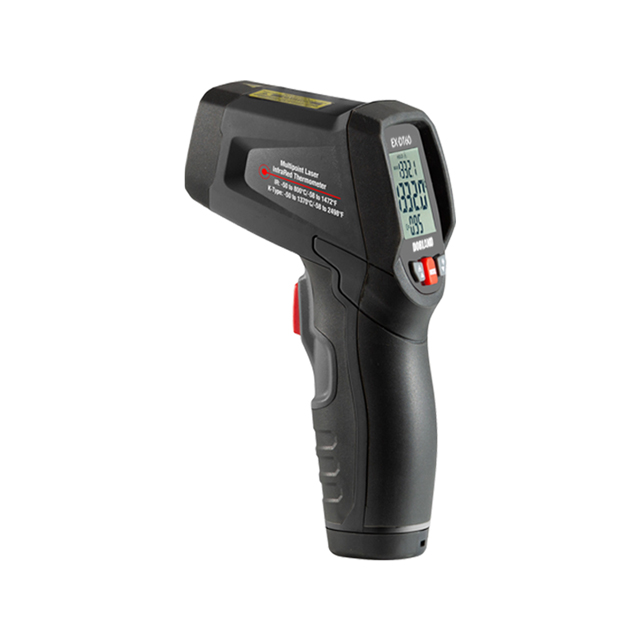

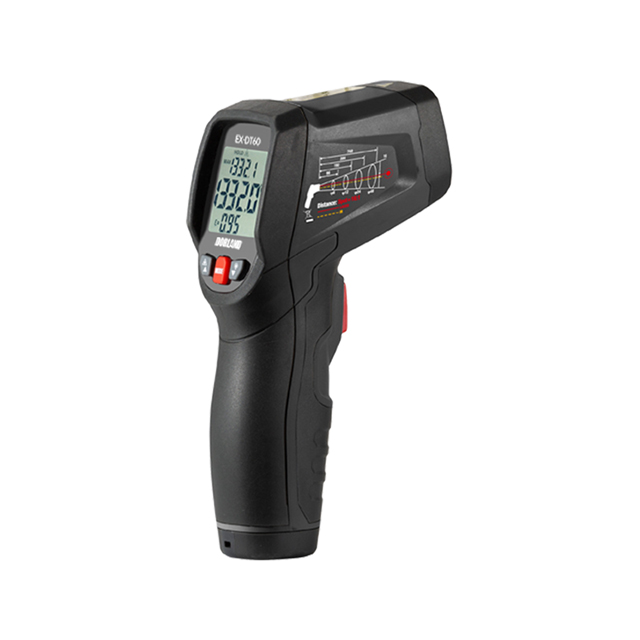

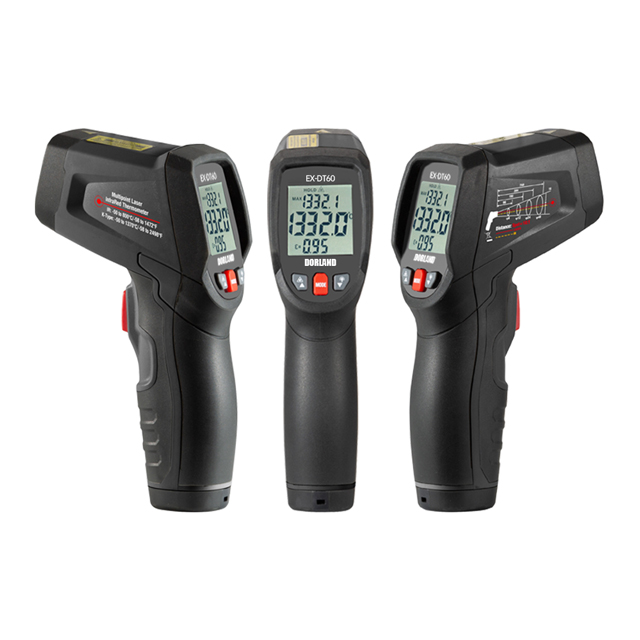

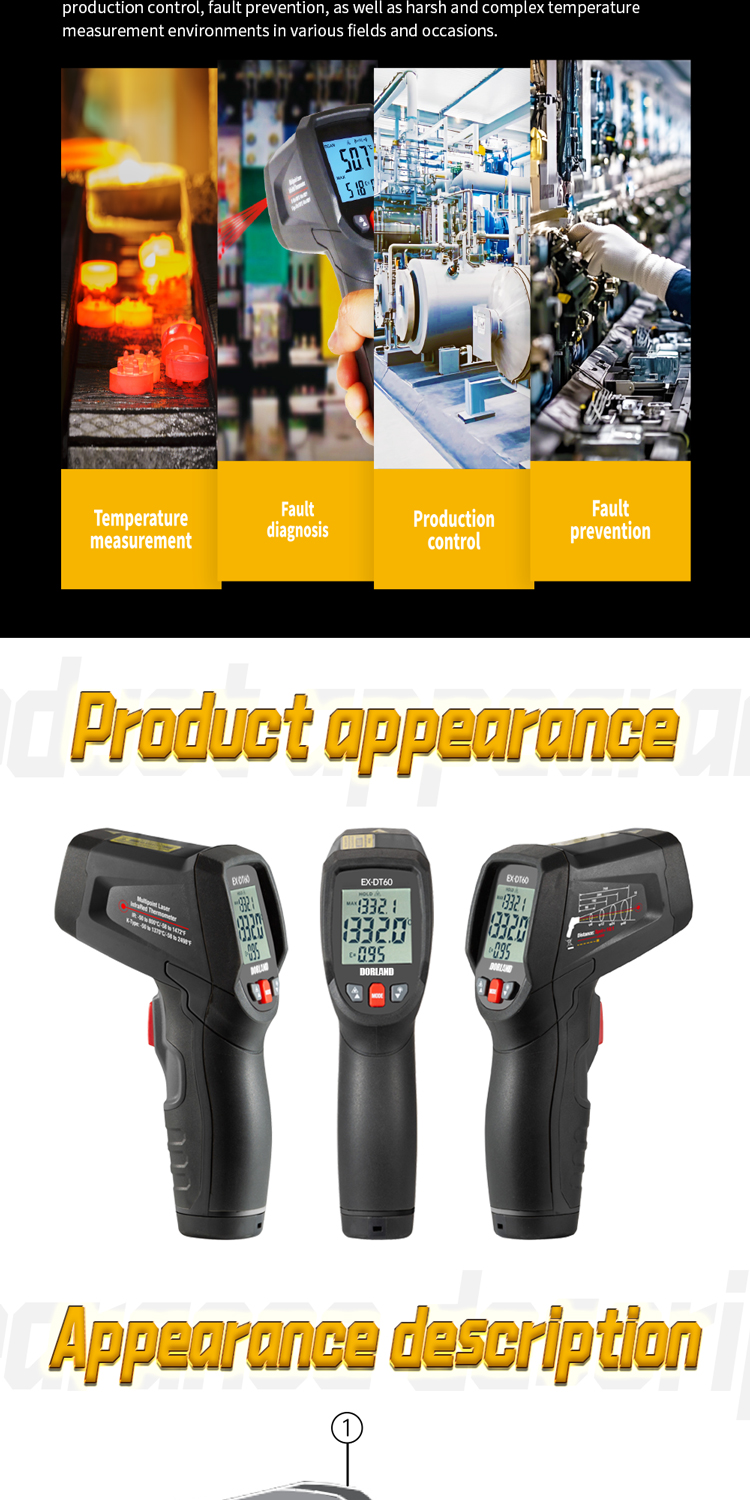

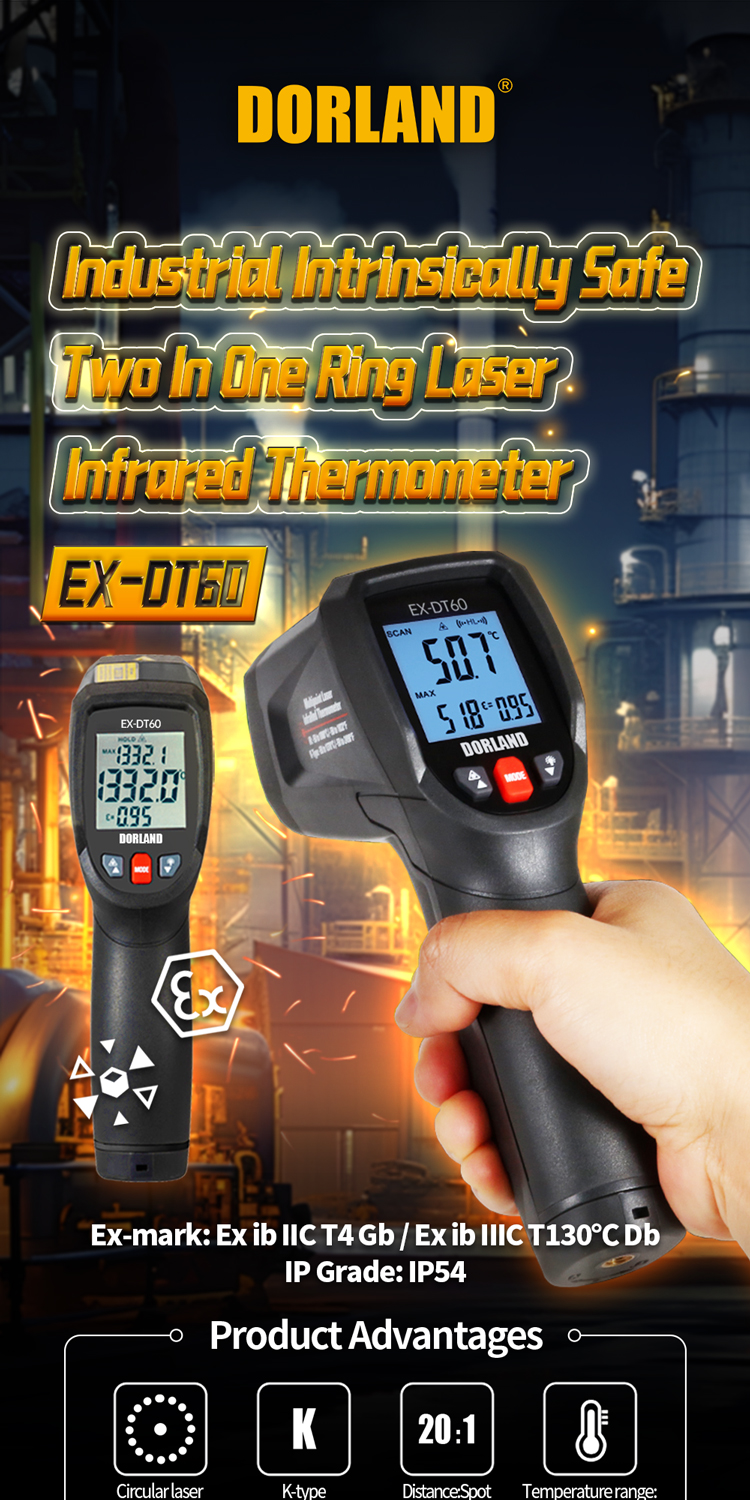

Dorland System Control Technology Co., Ltd. has recently launched the EX-DT60 intrinsically safe industrial grade two in one ring laser infrared thermometer. It has a double injection molding casing, IP54 waterproof and dustproof, and can adapt to harsh industrial infrared temperature measurement environments. It is easy to use, has a solid design, high measurement accuracy, and a wide temperature measurement range. It has laser aiming, a backlight display, maximum and minimum values, data retention, high and low temperature alarms, adjustable emissivity, and automatic shutdown function. This handheld infrared thermometer can be used to test the surface temperature of objects that traditional contact infrared thermometers find difficult to measure.
In addition, it can also be used in conjunction with various applications such as OA office systems, inspection and positioning systems, and data collection systems. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.

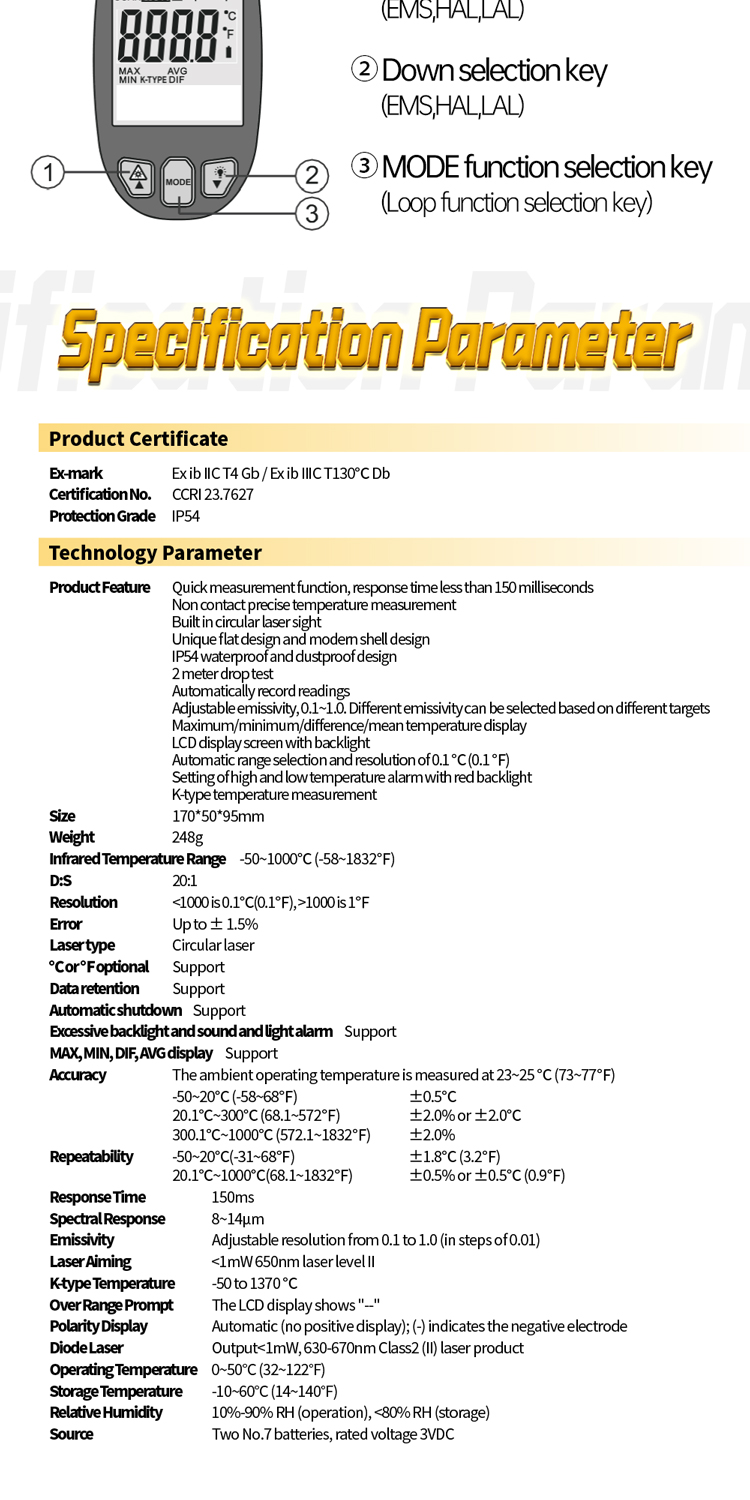

Ex-Marking:
Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db
Certificate No.:
CCRI 23.7627
Protection Grade
IP54
Infrared temperature range：
-50.0℃~1000.0℃/(-58.0~1832.0)℉
Temperature measurement method:
Non contact precise temperature measurement

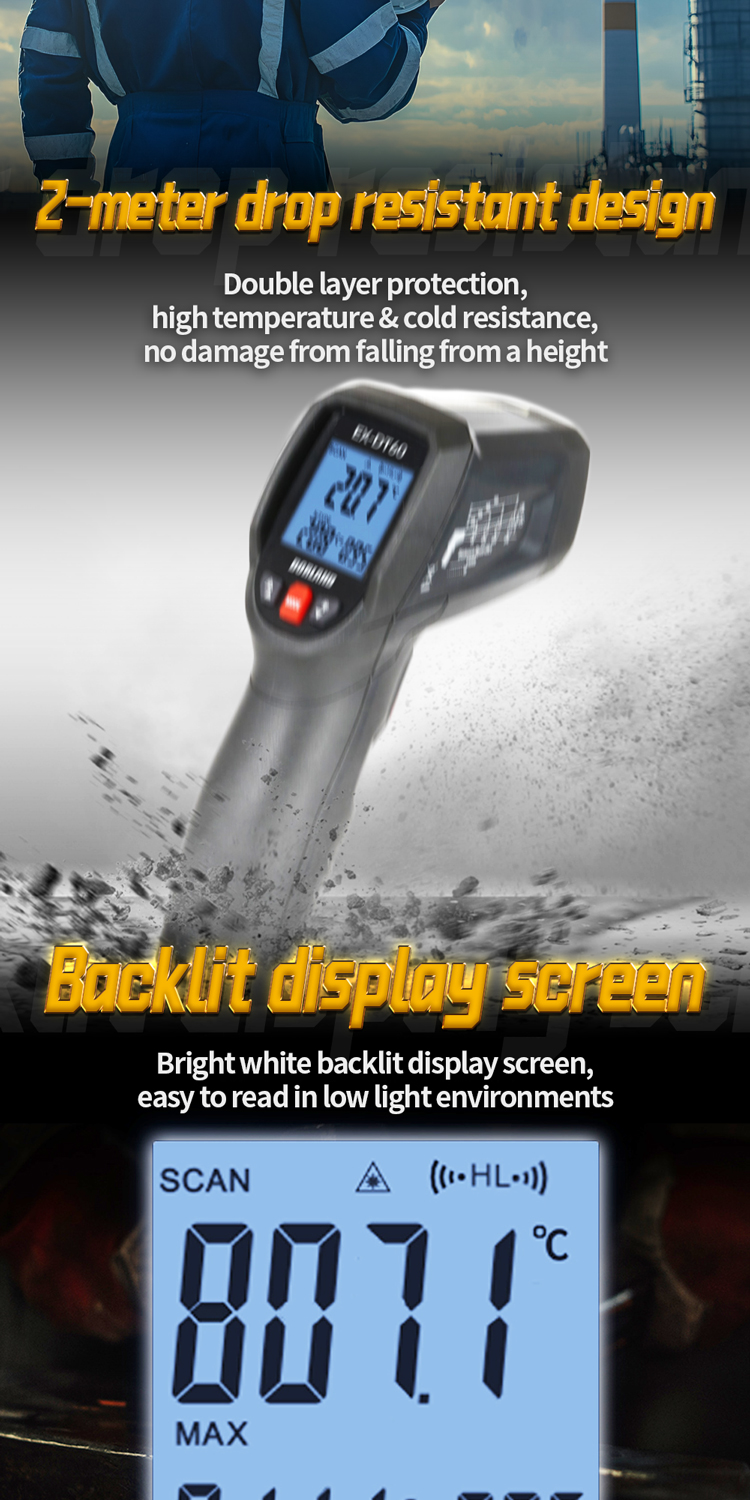

Drop test:
2 meter drop test
Reading Record:
Automatically record readings

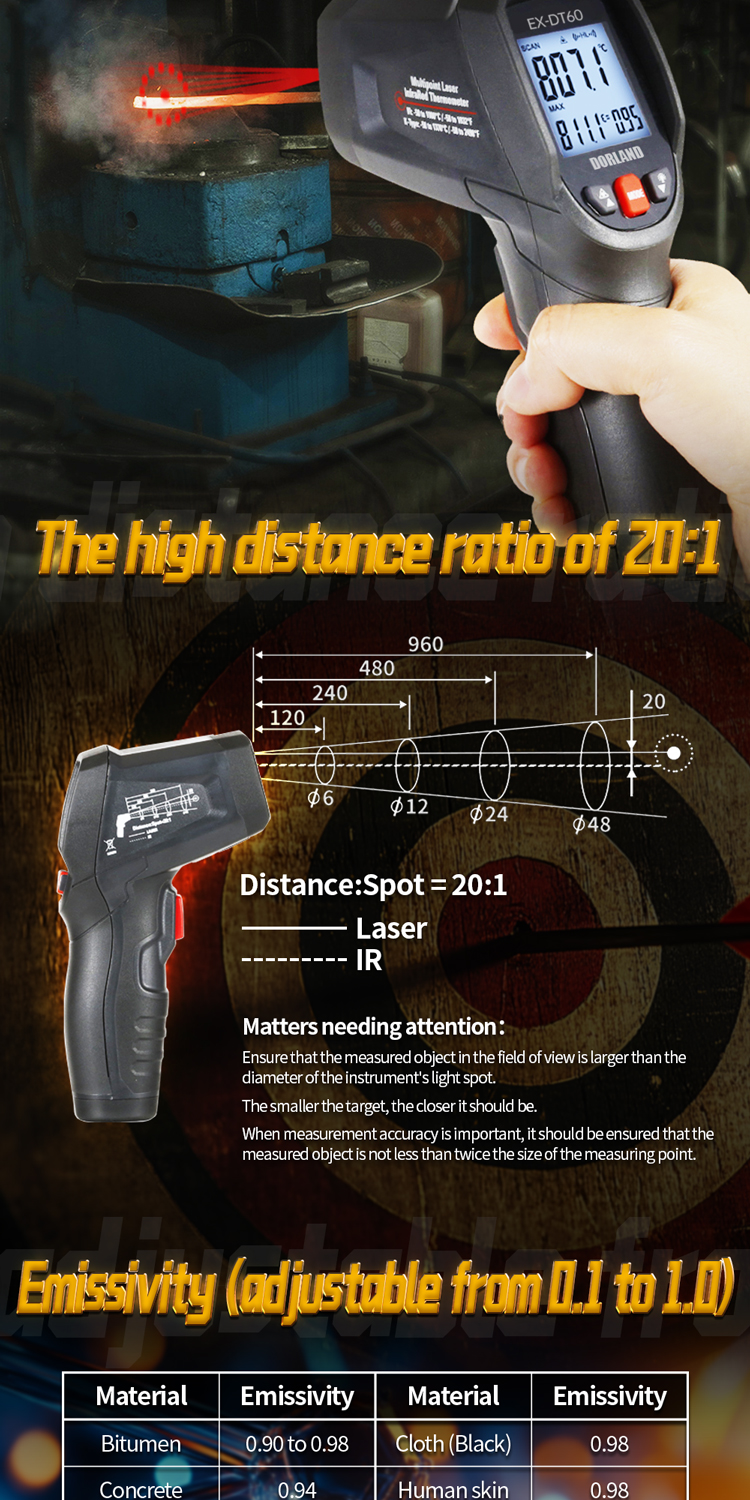

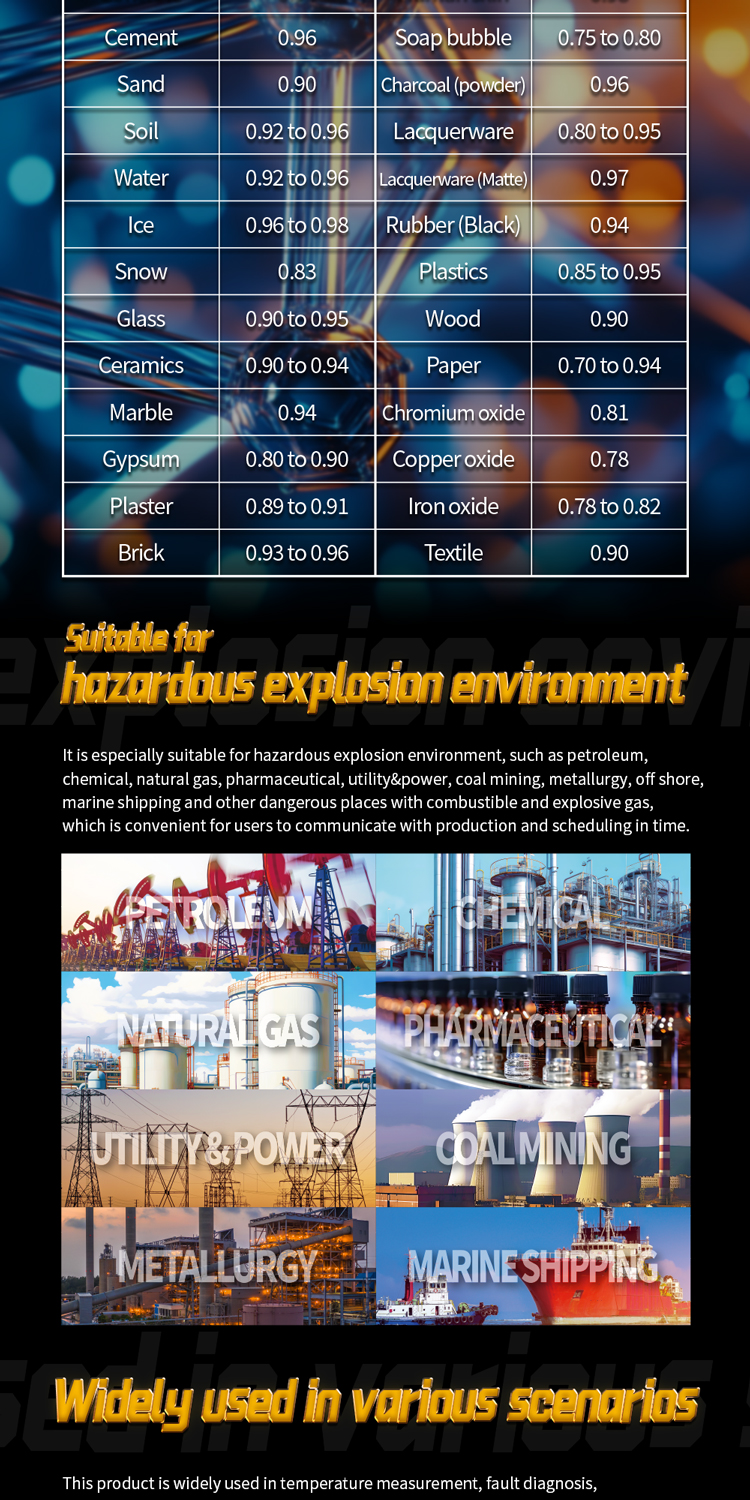

Emissivity:
0.1~1.0, different emissivity can be selected based on different targets

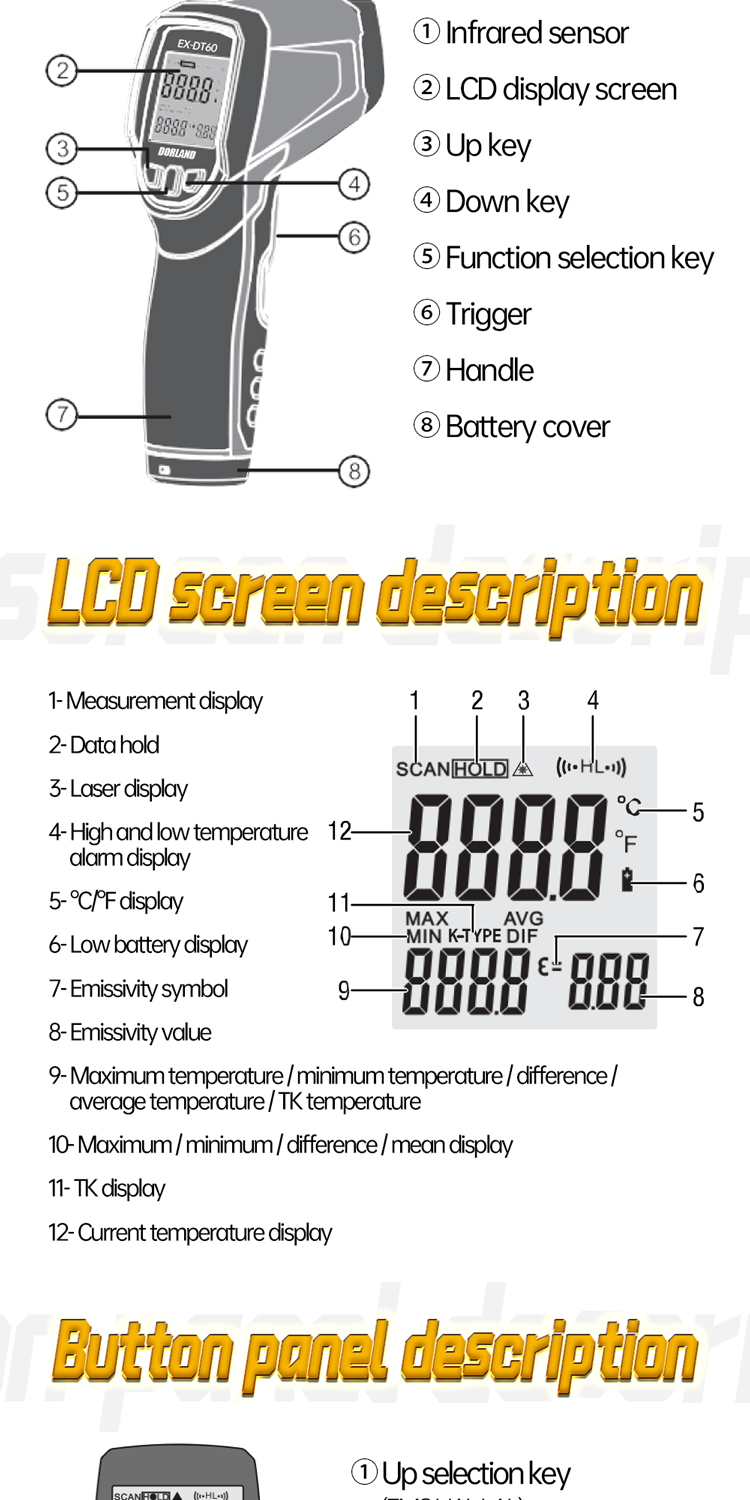

Display method:
Maximum/minimum/difference/mean temperature display
Resolution:
0.1℃(0.1℉） <1000，1℃（1℉） >1000
Size：
170*50*95mm
Weight：
248g
Infrared temperature range:
-50.0℃~1000.0℃/(-58.0~1832.0)℉
Data retention:
Support
Automatic shutdown:
Support
Excessive backlight and sound and light alarm:
Support
Over range indication:
Support
MAX，MIN，DIF，AVG display
Support
