Product Overview

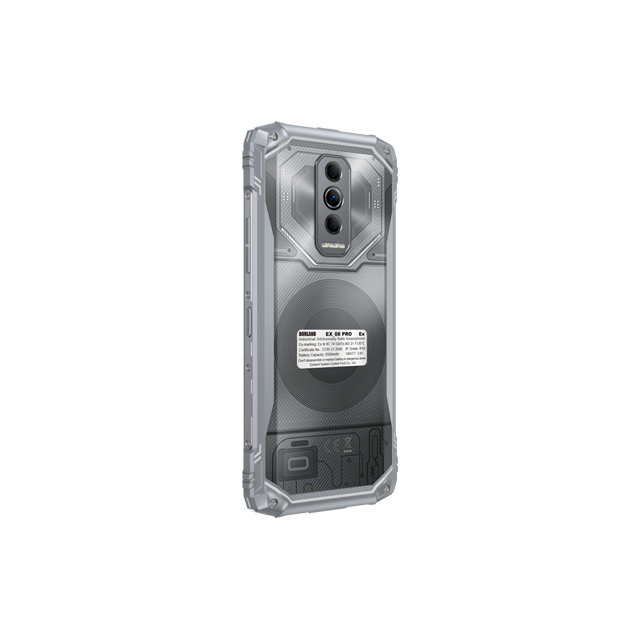

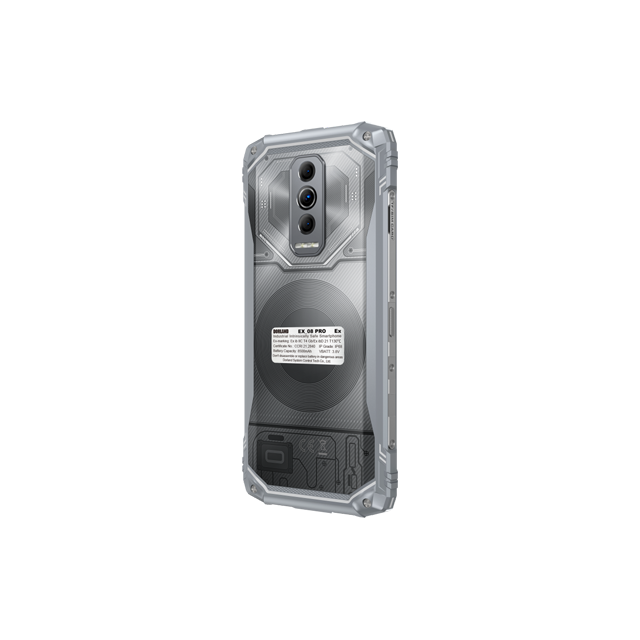

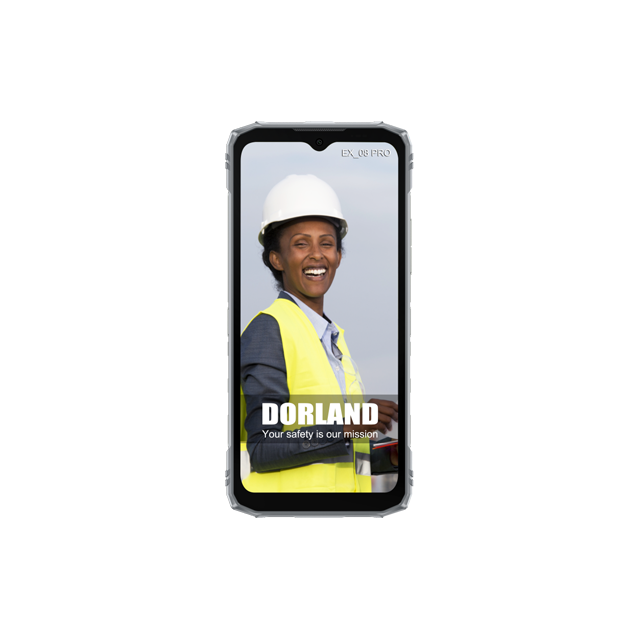

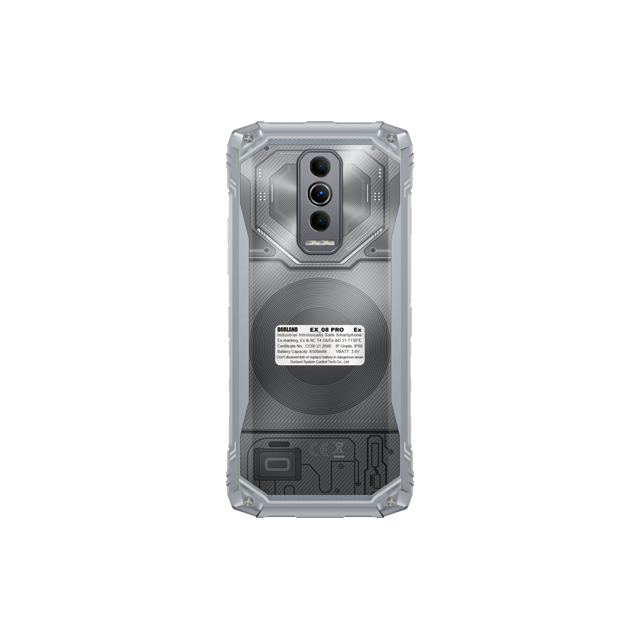

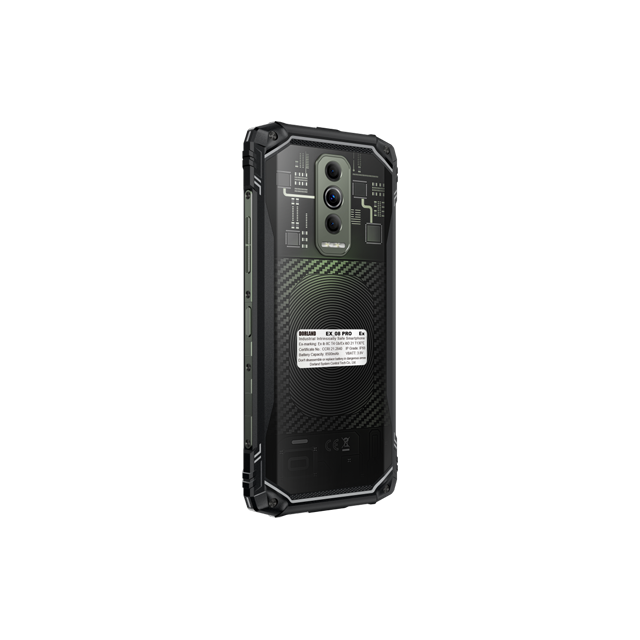

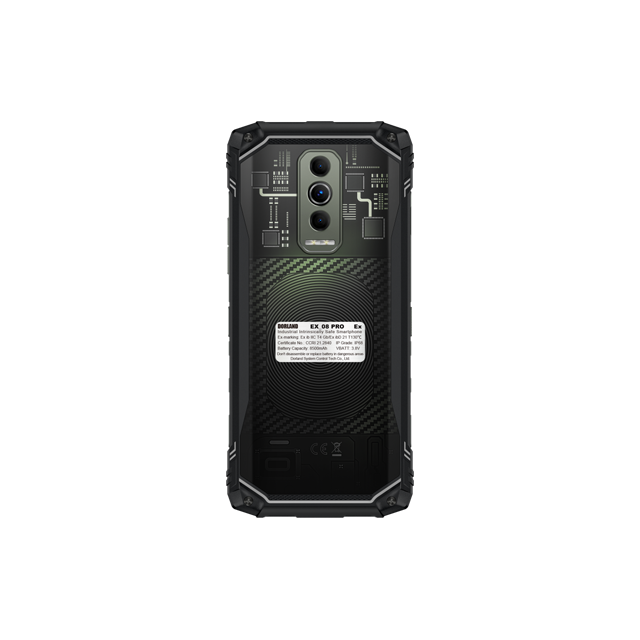

Dorland System Control Tech Co. Ltd. has recently launched the intrinsically safe intelligent industrial grade explosion-proof mobile phone EX_08 PRO, which features an intrinsically safe circuit design, a powerful appearance, and a sturdy body. This phone features a 6.56-inch waterdrop screen and is equipped with 8MP (Front Camera) & 64MP(Rear Camera)+0.3MP*2 cameras. Its waterproof and dustproof performance meets the international IP68 standard.
In addition, this phone features fingerprint unlocking on the side and comes standard with NFC, meeting the reading and writing needs of various scenarios. We have also configured various functions such as Beidou+Galileo+Glonass+GPS positioning inside the phone, which are suitable for outdoor construction, pipeline inspection, etc. It can be used in conjunction with OA office systems, inspection positioning systems, data acquisition systems, and other applications. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
Key Technical Specifications
| Ex-marking: | Ex ib IIC T4 Gb/Ex ibD 21 T130 ℃ |
| Certificate no.: | CCRI 21.2840 |
| IP Grade: | IP68 |
| OS: | Android 16.0 |
| Screen: | 6.56-inch waterdrop screen 720 * 1612 HD+ |
| Memory: | 6GB RAM (+RAM can be expanded by an additional 30GB)+128GB ROM |
| Processor: | UNISOC T7250 (T615) 8-core 1.8GHz |
| Front camera: | 8MP |
| Rear camera: | 64MP+0.3MP * 2 |
| Battery capacity: | 8500mAh |
| Supported frequency band: | All network frequency band Simplified configuration of all network frequency bands GSM:B2/3/5/8 WCDMA：B1/2/4/5/8 TDD:B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/18/19/20/25/26/28AB/66 EDGE/GPRS: Supports |
| Bluetooth: | Bluetooth 5.0 |
| WIFI: | Supports 2.4G/5G (802.11ac/a/b/g/n) |
| NFC: | Supports |
| GPS: | Supports, Beidou，Galileo，Glonass，GPS |
Highlights & Features
Intrinsically Safe Explosion-proof——Suitable for multiple flammable and explosive hazardous environments such as petroleum, chemical, maritime, etc
High protection level——IP68 and 1.5-meter drop protection can be used in harsh working environments
The latest operating system——Android 16.0
High-capacity battery——8500mAh
Applications
Suitable for on-site photography, mobile office, inspection, and work permit management in flammable and explosive hazardous environments.
