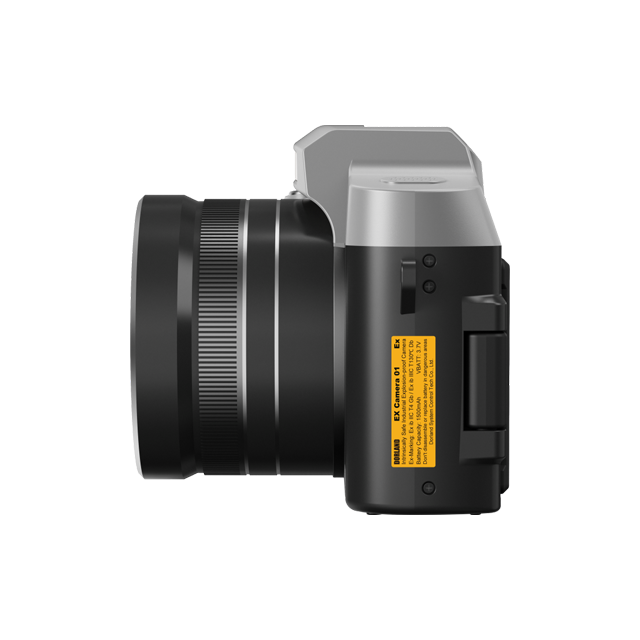

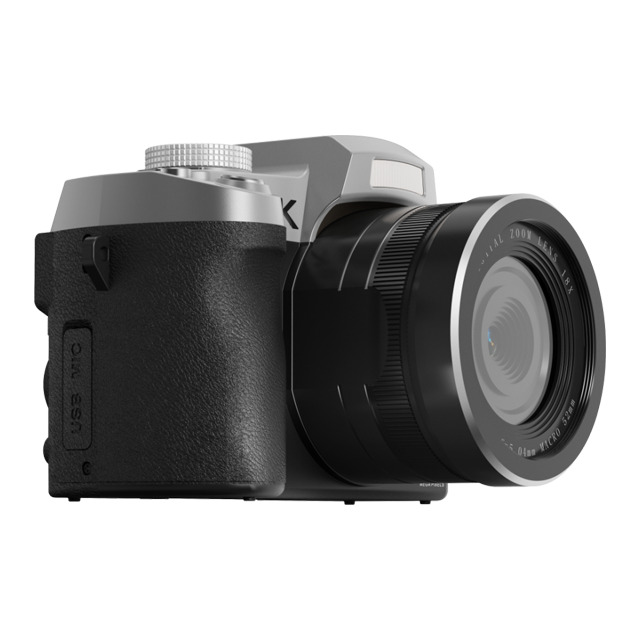

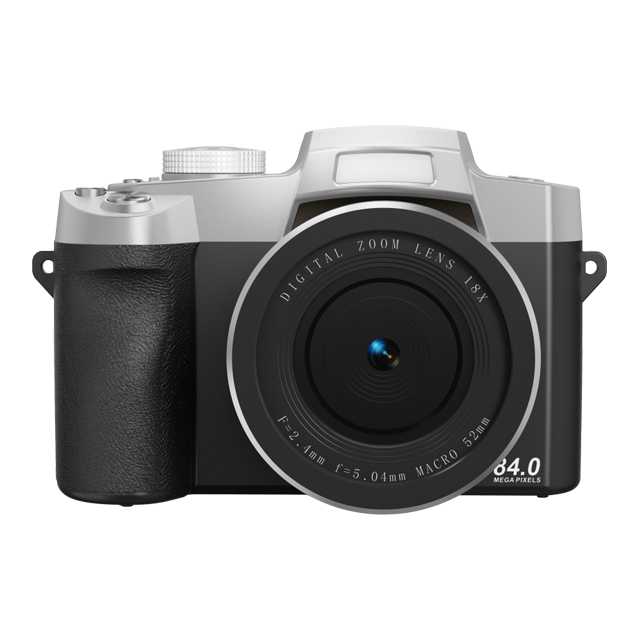

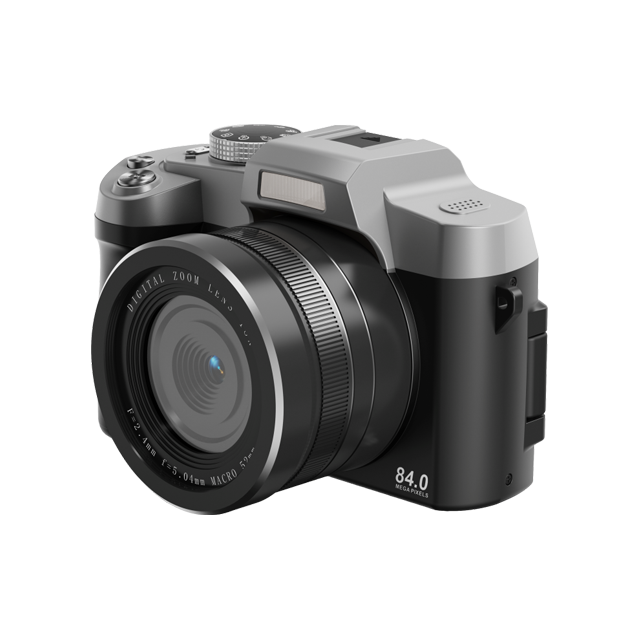

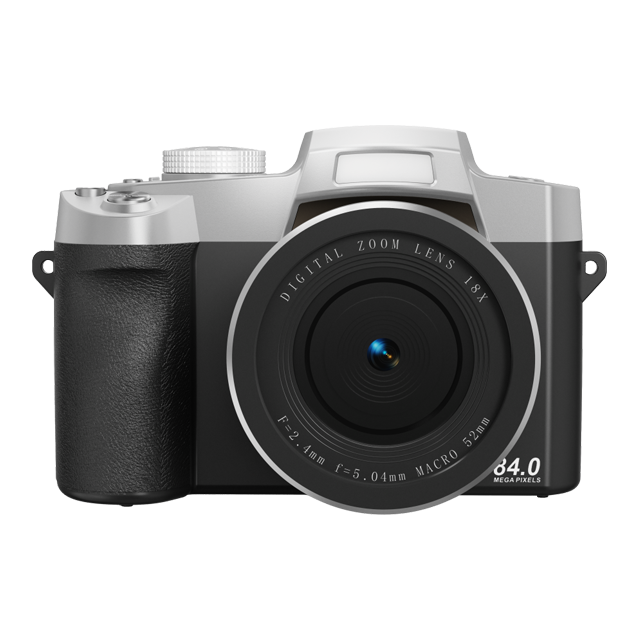

Dorland System Control Tech Co., Ltd. has recently launched the intrinsically safe industrial explosion-proof camera EX Camera 01, which features 6K ultra-high-definition video recording and 84-megapixel photography, equipped with an 18x digital zoom processor and built-in image stabilization. It captures smooth and clear dynamic footage with precise autofocus, accurately presenting scenes near and far, and supports remote control shooting.

In addition, it is suitable for outdoor construction, pipeline inspection, and other applications, and can be used in conjunction with various systems such as OA office systems, inspection positioning systems, and data collection systems. It is particularly suitable for use in hazardous and explosive environments, such as oil, chemical, pharmaceutical, oil depot, and tank farm areas with flammable and explosive gases, facilitating timely communication between users and production and dispatching teams.

Ex-Marking:Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db
Image sensor:SONY CMOS sensor with 48 million pixels, capable of interpolating up to 84 million pixels
Still image:Format: JPG; Resolution: 8M, 12M, 20M, 24M, 30M, 48M, 56M, 64M, 72M, 84M (software interpolation)
Image quality:Standard/High Quality/Ultra High Quality
Movie clip:

Format: MP4, Resolution: 6K_5760*3240 (30FPS), 5K_5120*2880 (30FPS), 4.7K_4608X2592 (30FPS), 4K_3840X2160 (60/30FPS), 2.7K_2688X1520 (30FPS), FHD_1920X1080 (60/30FPS), HD_1280x720 (120/60/30FPS)

Lens:AF focusing lens, F/2.4, f=5.04mm
Speed:Auto / ISO100 / ISO200 / ISO400 / ISO800 / ISO1600 / ISO3200 / ISO6400
Autofocus (AF) range:10cm~infinitely far
Digital zoom:18x digital zoom
Zoom mode:Auto focus mode: 0.1m to infinity; fixed focal length mode: 2.0m to infinity
Storage medium:Support TF card; the card used must be Class 10 or above and within 256GB (inclusive)
WIFI (APP) control:Support
External MIC recording interface:Support
LED fill light:Photographing/video recording and light compensation
White balance:Automatic / Sunny / Cloudy / Fluorescent / Tungsten Lamp
Exposure and tasting:–3.0EV~+3.0EV
Metering:Average metering / Center metering / Spot metering / Matrix metering
Camera timer:Settings: 2 seconds/5 seconds/10 seconds/15 seconds/30 seconds
Beauty Filter:Support
Filter:Normal/Black and White/Negative Film/Vintage/Brown/Warm Color/Cool Color/Bright/Red/Green/Blue
Computer interface:USB 2.0 Micro Type (High Speed), HDMI Port, TF Card Slot, External Microphone Jack
Automatic shutdown:Off/3 minutes/5 minutes/10 minutes

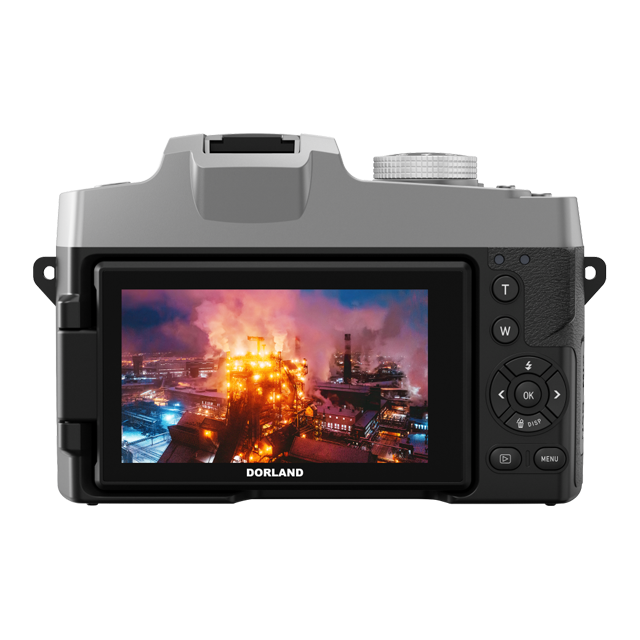

LCD screen:3.0-inch ultra-high-definition touch IPS screen (16:9)
Language:

English (default), Simplified Chinese, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, (other languages require customized menus)

Battery:

Capacity 1500mAh, 3.7V (weight 27.5±5g)

Body size:118.4*82*83mm
Product weight:About 365±5g (with battery) About 337±5g (without battery)
