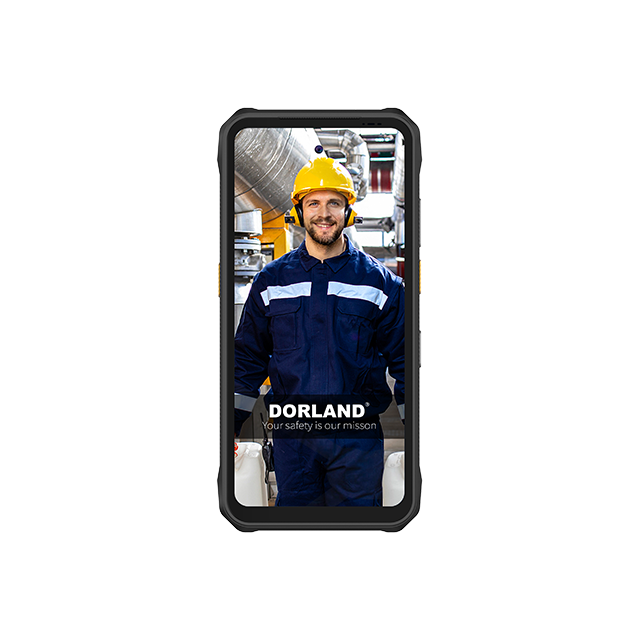

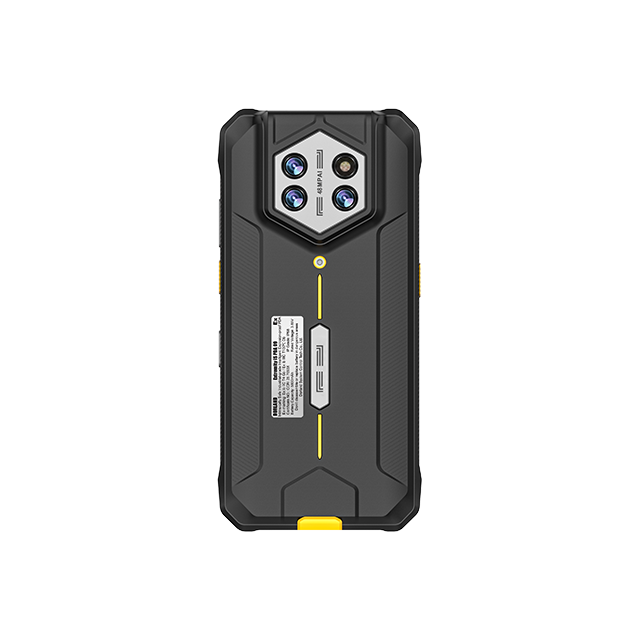

Dorland System Control Tech Co., Ltd. has recently launched the Extremity IS PDA 09, an intrinsically safe intelligent full network industrial grade explosion-proof handheld terminal. It adopts advanced technology, intrinsically safe circuit design, powerful appearance, and sturdy body. This product is equipped with the Android 14 intelligent operating system, using a high-performance processor and powerful configuration. This device can integrate modules and functions such as QR code scanning, NFC reading and writing, GPS positioning, etc. It is suitable for outdoor construction, pipeline inspection, and other functions, and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank farms, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users, production, and scheduling.
Ex-marking: | Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db |
Certificate No.: | CCRI 25.7093X |
IP Grade: | IP68 |
OS: | Android 14 |
CPU: | MT6789, Octa-core, .2GHz |
Screen: | 6.56-inch 720*1612 resolution |
Memory: | 8+128Gb(Optional 8+256GB for batch order) |
Camera: | Front 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera 8MP Wide-angle |
WIFI: | WIFI 802.11(a/b/g/n/ac) 2.4G+5.0G Dual-band WIFI |
Frequency band: | GSM(B2/3/5/8) WCDMA(B1/2/4/5/8) TDD(B34/38/39/40/41) FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66) |
Bluetooth: | BT5.1 (BLE) |
GPS: | Supports GPS/Beidou/Galileo/GLONASS |
Dimension: | 183.1*88.6*24.1mm |
Battery: | 3.85V/5800mAh |
NFC: | Support |
Data Collection: | Fingerprint, QR Code, NFC |
