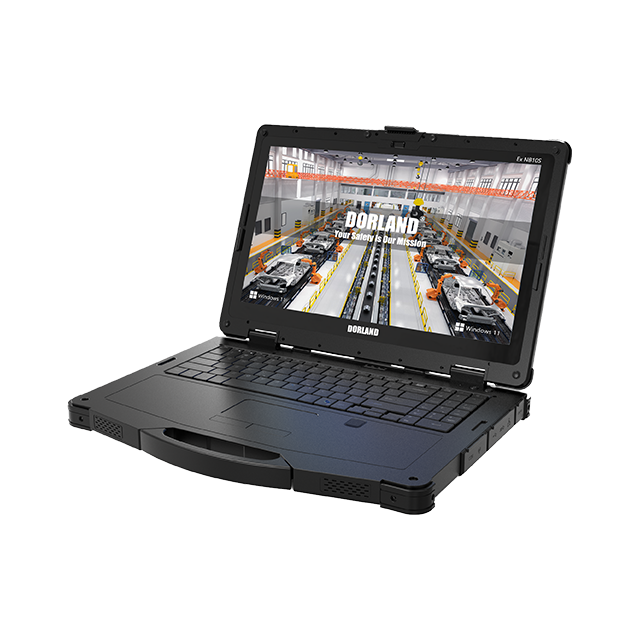

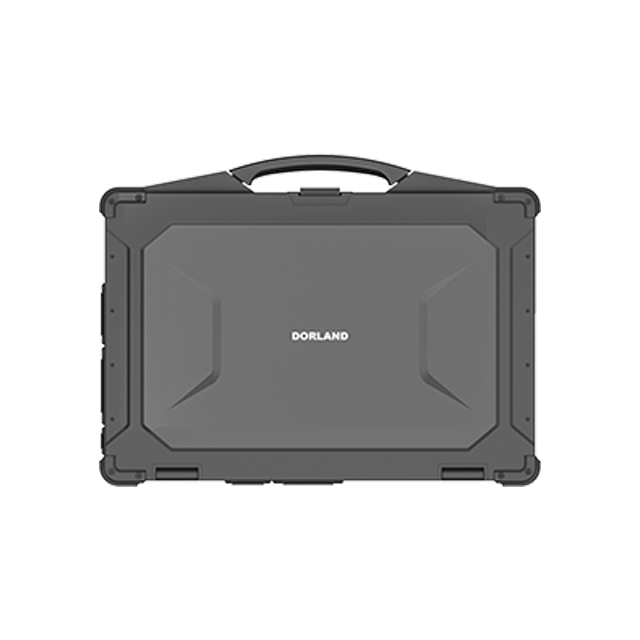

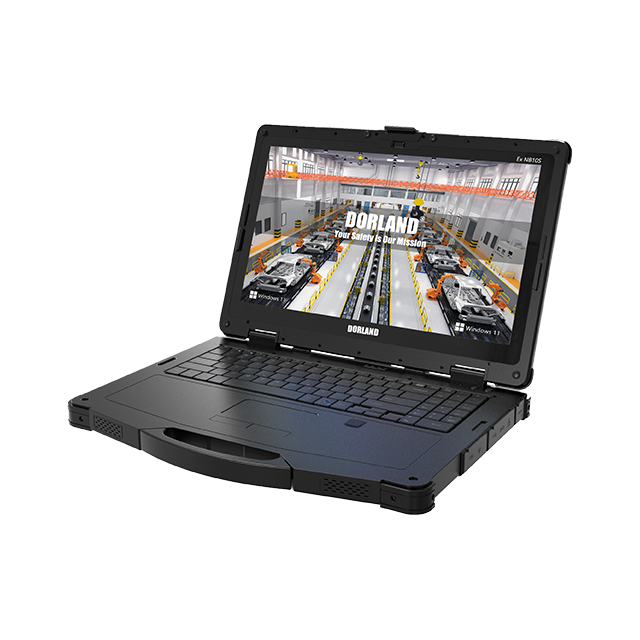

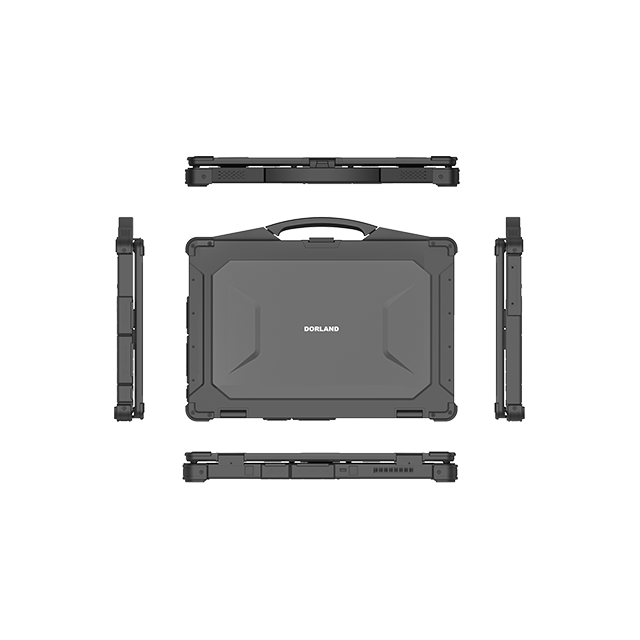

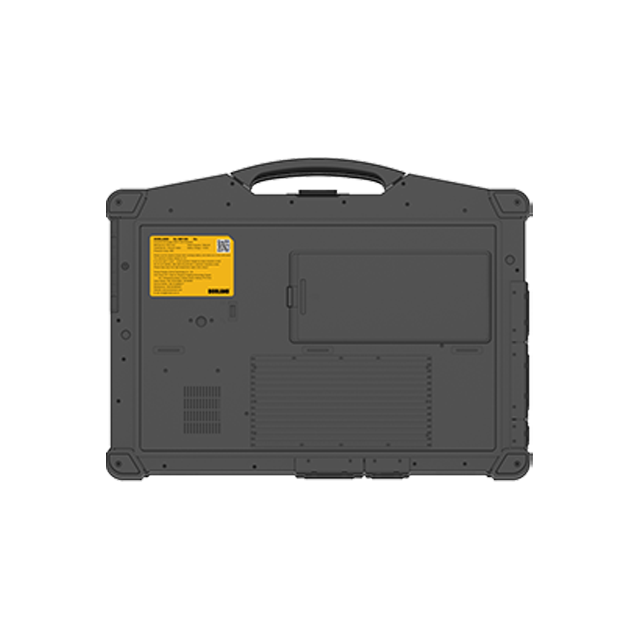

Developed by Dorland System Control Tech Co., LTD., the industrial intrinsically safe & solid Notebook Ex NB10S adopted advanced technology with intrinsically safe circuit, 15.6” screen, and 5.0 Megapixel (Front Camera). Its waterproof and dustproof performance can meet the IP65 standards.

In addition, the Notebook supports fingerprint identification, WIFI and Bluetooth, built-in GPS, compass and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.


Ex-marking

Ex ic IIB T5 Gc

Certificate No.:

SYEx23.1055X

IP Grade:

IP65

OS:

Windows 11 Home, Optional: Windows 11 Pro, Windows 11 IOT

CPU:

12th generation, Intel i5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz

Optional: i7-1255U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 1.2GHz~4.7GHz

Screen:

15.6-inch FHD 16:9 Resolution: 1920*1080

RAM:

16GB DDR5, Optional: 32GB

ROM:

256GB SSD

Front Cameras:

5.0MP

WiFi:

Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax

Bluetooth:

BT5.1 (BLE) class1   Transmission distance: 10 m

GPS:

Supports single GPS or single glonass, default GPS

Dimension:

407*305.8*45.5mm

Battery:

Removable Polymer Lithium-ion Battery, Hot-swappable 7500mAh / 3.7V

Battery life:

9.5 hours (default: 50% volume, default: 200 lumens, 720P HD video)

Fingerprint:

Built in, *1 SPI Fingerprint (Power-On Login)

Optional accessories:

Battery Quad-charging dock
